Tekniset tiedot
Notes
General For panel cutouts of type B24, cannot be used for panel mounting bases having a pre-mounted protective cover
Product properties

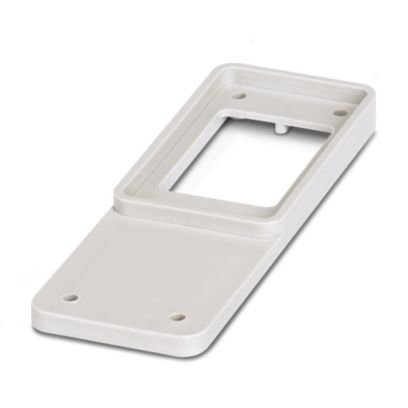

Type B24
Product type Adapter plate
Dimension
Width 52 mm
Height 7 mm
Length 150 mm
Drill hole distance, horizontal 130 mm
Drill hole distance, vertical 27 mm
Hole diameter 4.5 mm
Installation dimensions
Width of the assembly cutout 36 mm
Length of the assembly cutout 113 mm
Material specifications
Color gray
Material PA
Flammability rating according to UL 94 HB
Seal material PTS
Environmental and real-life conditions
Ambient conditions
Degree of protection IP54
Ambient temperature (operation) -20 °C … 100 °C
Mounting
Assembly instructions Cannot be used in panel mounting bases having a pre-mounted cover
Muut tiedot
Tuotenumero 1660407
Pakkausyksikkö 10 Kappaletta
Tuoteavain BF7AZD
Tuotekoodi BF7AZD
GTIN 4017918022044
Paino kappaletta kohti (sis. pakkauksen) 37,98 g
Paino kappaletta kohti (ilman pakkausta) 37,98 g
Tullitariffinumero 85389099
Alkuperämaa DE
| Väri | harmaa |
|---|
