APUKOSKETIN, 1S,0A, päälle, A9 – A95, N, UA

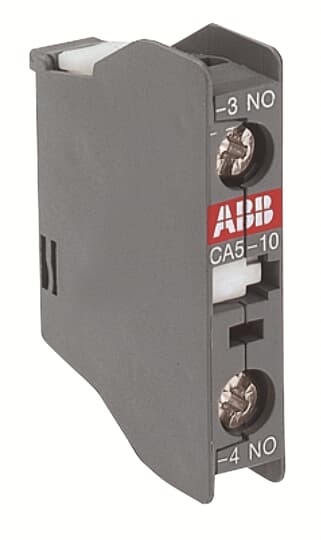

CA5-10 is a 1-pole front mounted auxiliary contact block equipped with screw terminals and can be fitted on A serie contactors and N serie contactor relays. CA5-10 is available with 1 N.O. instantaneous contacts for standard industrial environments.
Dimensions
Product Net Width:11 mm
Product Net Depth / Length:32.5 mm
Product Net Height:47 mm
Product Net Weight:0.014 kg
Technical
Number of Auxiliary Contacts NO:1
Number of Auxiliary Contacts NC:0
Rated Operational Voltage:Auxiliary Circuit 690 V
Rated Frequency (f):Auxiliary Circuit 50 / 60 Hz
Rated Operational Current AC-15 (Ie):(500 V) 2 A
(690 V) 2 A
(24 / 127 V) 6 A
(220 / 240 V) 4 A
(380 / 400 V) 3 A
Short-Circuit Protective Devices:Auxiliary Circuit – gG Type Fuses 10 A
Rated Short-time Withstand Current Low Voltage (Icw):for 0.1 s 140 A
for 1 s 100 A
Maximum Electrical Switching Frequency:1200 cycles per hour
Rated Operational Current DC-13 (Ie):(24 V) 6 A / 144 W
(48 V) 2.8 A / 134 W
(72 V) 1 A / 72 W
(110 V) 0.55 A / 60 W
(125 V) 0.55 A / 69 W
(220 V) 0.30 A / 66 W
(250 V) 0.3 / 75 W
Rated Insulation Voltage (Ui):acc. to IEC 60947-5-1 690 V
acc. to UL/CSA 600 V
Mechanical Durability:10 million
3 million
Maximum Mechanical Switching Frequency:3600 cycles per hour
Degree of Protection:acc. to IEC 60529, IEC 60947-1, EN 60529 Auxiliary Terminals IP20
Terminal Type:Screw Terminals
