Tekniset tiedot
Product properties

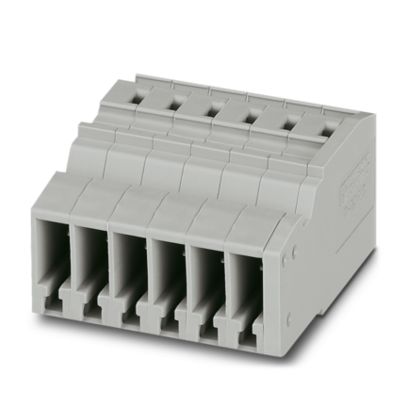

Product type Terminal coupling
Number of positions 6
Pitch 5.2 mm
Area of application Railway industry
Machine building
Plant engineering
Number of connections 1
Number of rows 1
Insulation characteristics
Overvoltage category III
Degree of pollution 3
Electrical properties
Rated surge voltage 6 kV
Maximum power dissipation for nominal condition 0.77 W
Dimensions
Width 31.2 mm
End cover width 2.2 mm
Height 37.2 mm
Depth 18.8 mm
Pitch 5.2 mm
Material specifications
Color gray
Flammability rating according to UL 94 V0
Insulating material group I
Insulating material PA
Static insulating material application in cold -60 °C
Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21)) 130 °C
Relative insulation material temperature index (Elec., UL 746 B) 130 °C
Fire protection for rail vehicles (DIN EN 45545-2) R22 HL 1 – HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R23 HL 1 – HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R24 HL 1 – HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R26 HL 1 – HL 3
Calorimetric heat release NFPA 130 (ASTM E 1354) 28 MJ/kg
Surface flammability NFPA 130 (ASTM E 162) passed
Specific optical density of smoke NFPA 130 (ASTM E 662) passed
Smoke gas toxicity NFPA 130 (SMP 800C) passed
Muut tiedot
Tuotenumero 3042298
Pakkausyksikkö 25 Kappaletta
Tuoteavain BE2145
Tuotekoodi BE2145
GTIN 4017918922627
Paino kappaletta kohti (sis. pakkauksen) 16,802 g
Paino kappaletta kohti (ilman pakkausta) 16,705 g
Tullitariffinumero 85366990
Alkuperämaa PL
| Väri | harmaa |
|---|
