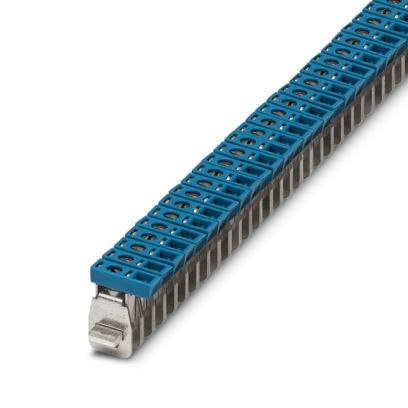

Connection terminal block

Tekniset tiedot

Product properties
Product type Installation terminal block
Number of positions 1.00
Number of connections 1
Number of rows 1

Electrical properties
Maximum load current 76 A (with 16 mm² conductor cross section)
Maximum power dissipation for nominal condition 2.43 W
Nominal current IN 76 A
Current carrying capacity of the neutral busbar 140 A

Connection data

Nominal cross section 16 mm²
Maximum load current 76 A (with 16 mm² conductor cross section)
Cross section AWG (converted acc. to IEC)

Dimensions
Width 9.8 mm
Height 23.4 mm
Depth 32 mm
Length 23.5 mm

Material specifications

Color blue
Flammability rating according to UL 94 V2
Insulating material PA
Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21)) 125 °C
Relative insulation material temperature index (Elec., UL 746 B) 125 °C

Electrical tests

Temperature-rise tests
Requirement temperature-rise test Increase in temperature ≤ 45 K
Result Test passed
Short-time withstand current 16 mm² 1.92 kA
Result Test passed

Mechanical tests

Mechanical strength
Result Test passed

Test for conductor damage and slackening
Rotation speed 10 rpm
Revolutions 135
Conductor cross section/weight 1.5 mm² / 0.4 kg
16 mm² / 2.9 kg
Result Test passed

Environmental and real-life conditions

Ambient conditions
Ambient temperature (operation) -60 °C … 105 °C (max. short-term operating temperature RTI Elec.)
Ambient temperature (storage/transport) -25 °C … 60 °C (for a short time, not exceeding 24 h, -60 °C to +70 °C)
Ambient temperature (assembly) -5 °C … 70 °C
Ambient temperature (actuation) -5 °C … 70 °C
Permissible humidity (storage/transport) 30 % … 70 %

Mounting
Mounting type Neutral busbar

Muut tiedot

Tuotenumero 0423014
Pakkausyksikkö 50 Kappaletta
Tuoteavain BE7331
Tuotekoodi BE7331
GTIN 4017918001995
Paino kappaletta kohti (sis. pakkauksen) 10,574 g
Paino kappaletta kohti (ilman pakkausta) 10,426 g
Tullitariffinumero 85369010
Alkuperämaa IN
