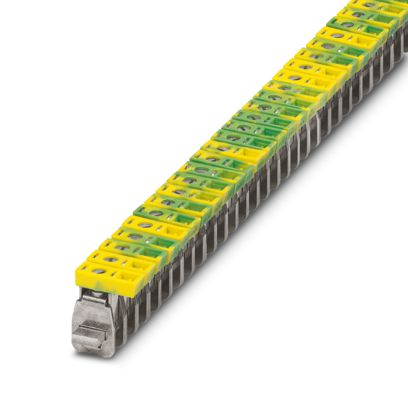

Connection terminal block

Tekniset tiedot

Product properties

Product type Installation terminal block
Number of connections 1
Number of rows 1

Electrical properties

Maximum load current 76 A (with 16 mm² conductor cross section)
Maximum power dissipation for nominal condition 2.43 W
Nominal current IN 76 A
Current carrying capacity of the neutral busbar 140 A

Connection data

Nominal cross section 16 mm²
Maximum load current 76 A (with 16 mm² conductor cross section)
Cross section AWG (converted acc. to IEC)

Dimensions

Width 9.8 mm
Height 23.4 mm
Depth 32 mm
Length 23.4 mm

Material specifications

Color green-yellow
Flammability rating according to UL 94 V2
Insulating material PA
Static insulating material application in cold -40 °C
Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21)) 125 °C
Relative insulation material temperature index (Elec., UL 746 B) 125 °C

Environmental and real-life conditions

Ambient conditions
Ambient temperature (operation) -60 °C … 105 °C (max. short-term operating temperature RTI Elec.)
Ambient temperature (storage/transport) -25 °C … 60 °C (for a short time, not exceeding 24 h, -60 °C to +70 °C)
Ambient temperature (assembly) -5 °C … 70 °C
Ambient temperature (actuation) -5 °C … 70 °C
Permissible humidity (storage/transport) 30 % … 70 %

Mounting

Mounting type Neutral busbar

Muut tiedot

Tuotenumero 0423027
Pakkausyksikkö 50 Kappaletta
Tuoteavain BE7331
Tuotekoodi BE7331
GTIN 4017918002008
Paino kappaletta kohti (sis. pakkauksen) 10,564 g
Paino kappaletta kohti (ilman pakkausta) 10,55 g
Tullitariffinumero 85369010
Alkuperämaa IN
