Tekniset tiedot
Product properties

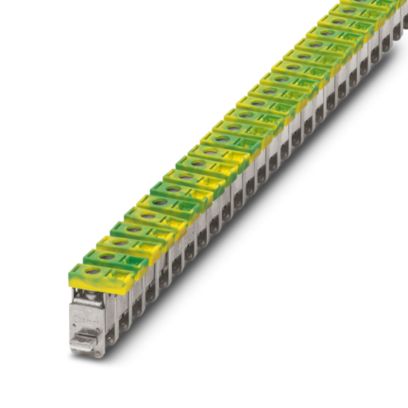

Product type Installation terminal block
Number of connections 1
Number of rows 1
Electrical properties
Maximum load current 125 A (with 35 mm² conductor cross section)
Maximum power dissipation for nominal condition 4.06 W
Nominal current IN 125 A
Current carrying capacity of the neutral busbar 140 A
Connection data
Nominal cross section 35 mm²
Maximum load current 125 A (with 35 mm² conductor cross section)
Cross section AWG (converted acc. to IEC)
Level 1 above 1 below 1
Screw thread M6
Tightening torque 3.2 … 3.7 Nm
Stripping length 16 mm
Connection in acc. with standard IEC / EN
Conductor cross section rigid 2.5 mm² … 35 mm²
Cross section AWG 12 … 2 (converted acc. to IEC)
Conductor cross section flexible 2.5 mm² … 35 mm²
Conductor cross section, flexible [AWG] 12 … 2 (converted acc. to IEC)
Conductor cross-section flexible (ferrule without plastic sleeve) 2.5 mm² … 35 mm²
Flexible conductor cross section (ferrule with plastic sleeve) 2.5 mm² … 35 mm²
2 conductors with same cross section, solid 1.5 mm² … 16 mm²
2 conductors with same cross section, flexible 1.5 mm² … 16 mm²
2 conductors with same cross section, flexible, with ferrule without plastic sleeve 1.5 mm² … 16 mm²
2 conductors with the same cross section, flexible, with TWIN ferrule with plastic sleeve 1.5 mm² … 10 mm²
Nominal current 125 A
Maximum load current 125 A (with 35 mm² conductor cross section)
Nominal voltage 300 V
Nominal cross section 35 mm²
Dimensions
Width 14.3 mm
Height 27.3 mm
Depth 40 mm
Length 27.3 mm
Material specifications
Color green-yellow
Flammability rating according to UL 94 V2
Insulating material PA
Static insulating material application in cold -40 °C
Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21)) 125 °C
Relative insulation material temperature index (Elec., UL 746 B) 125 °C
Environmental and real-life conditions
Ambient conditions
Ambient temperature (operation) -60 °C … 105 °C (max. short-term operating temperature RTI Elec.)
Ambient temperature (storage/transport) -25 °C … 60 °C (for a short time, not exceeding 24 h, -60 °C to +70 °C)
Ambient temperature (assembly) -5 °C … 70 °C
Ambient temperature (actuation) -5 °C … 70 °C
Permissible humidity (storage/transport) 30 % … 70 %
Standards and regulations
Connection in acc. with standard IEC / EN
Mounting
Mounting type Neutral busbar
Muut tiedot
Tuotenumero 0424026
Pakkausyksikkö 50 Kappaletta
Tuoteavain BE7331
Tuotekoodi BE7331
GTIN 4017918002053
Paino kappaletta kohti (sis. pakkauksen) 20,078 g
Paino kappaletta kohti (ilman pakkausta) 20,37 g
Tullitariffinumero 85369010
Alkuperämaa PL
| Väri | kelta/vihreä |
|---|
