Tekniset tiedot
Product properties

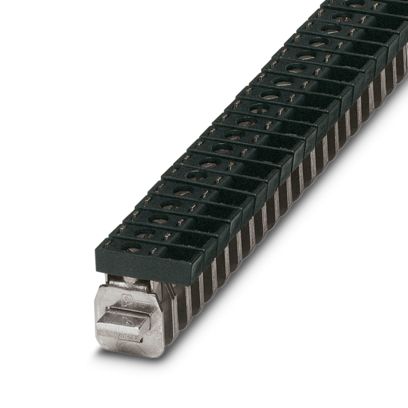

Product type Installation terminal block
Number of connections 1
Number of rows 1
Electrical properties
Maximum load current 41 A
Maximum power dissipation for nominal condition 1.02 W
Nominal current IN 32 A
Current carrying capacity of the neutral busbar 140 A
Connection data
Nominal cross section 4 mm²
Maximum load current 41 A
Cross section AWG (converted acc. to IEC)
Dimensions
Width 7 mm
Height 23.4 mm
Depth 24 mm
Length 23.4 mm
Material specifications
Color black
Flammability rating according to UL 94 V2
Insulating material PA
Static insulating material application in cold -60 °C
Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21)) 130 °C
Relative insulation material temperature index (Elec., UL 746 B) 130 °C
Fire protection for rail vehicles (DIN EN 45545-2) R22 HL 1 – HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R23 HL 1 – HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R24 HL 1 – HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R26 HL 1 – HL 3
Calorimetric heat release NFPA 130 (ASTM E 1354) 28 MJ/kg
Surface flammability NFPA 130 (ASTM E 162) passed
Specific optical density of smoke NFPA 130 (ASTM E 662) passed
Smoke gas toxicity NFPA 130 (SMP 800C) passed
Electrical tests
Temperature-rise test
Requirement temperature-rise test Increase in temperature ≤ 45 K
Result Test passed
Result Test passed
Environmental and real-life conditions
Ambient conditions
Ambient temperature (operation) -60 °C … 105 °C (max. short-term operating temperature RTI Elec.)
Ambient temperature (storage/transport) -25 °C … 60 °C (for a short time, not exceeding 24 h, -60 °C to +70 °C)
Ambient temperature (assembly) -5 °C … 70 °C
Ambient temperature (actuation) -5 °C … 70 °C
Permissible humidity (storage/transport) 30 % … 70 %
Mounting
Mounting type Neutral busbar
Muut tiedot
Tuotenumero 0421032
Pakkausyksikkö 50 Kappaletta
Tuoteavain BE7331
Tuotekoodi BE7331
GTIN 4017918001933
Paino kappaletta kohti (sis. pakkauksen) 5,5 g
Paino kappaletta kohti (ilman pakkausta) 5,426 g
Tullitariffinumero 85369010
Alkuperämaa IN
| Väri | musta |
|---|
