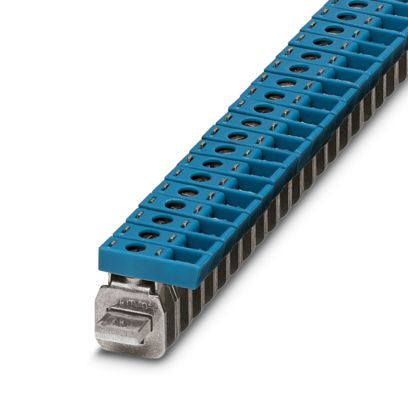

Connection terminal block

Tekniset tiedot

Product properties

Product type Installation terminal block
Number of connections 1
Number of rows 1

Electrical properties

Maximum load current 41 A
Maximum power dissipation for nominal condition 1.02 W
Nominal current IN 32 A
Current carrying capacity of the neutral busbar 140 A

Connection data

Nominal cross section 4 mm²
Maximum load current 41 A
Cross section AWG (converted acc. to IEC)

Level 1 above 1 below 1
Screw thread M4
Tightening torque 1.5 … 1.8 Nm
Stripping length 16 mm
Conductor cross section rigid 0.5 mm² … 6 mm²
Cross section AWG 20 … 10 (converted acc. to IEC)
Conductor cross section flexible 0.5 mm² … 4 mm²
Conductor cross section, flexible [AWG] 20 … 12 (converted acc. to IEC)
Conductor cross-section flexible (ferrule without plastic sleeve) 0.5 mm² … 6 mm²
Flexible conductor cross section (ferrule with plastic sleeve) 0.5 mm² … 6 mm²
2 conductors with same cross section, solid 0.5 mm² … 2.5 mm²
2 conductors with same cross section, flexible 0.5 mm² … 2.5 mm²
2 conductors with same cross section, flexible, with ferrule without plastic sleeve 0.5 mm² … 2.5 mm²
2 conductors with the same cross section, flexible, with TWIN ferrule with plastic sleeve 0.5 mm² … 2.5 mm²
Nominal current 41 A
Maximum load current 41 A (with 6 mm² conductor cross section)
Nominal voltage 300 V
Nominal cross section 4 mm²

Dimensions

Width 7 mm
Height 23.4 mm
Depth 23.6 mm
Length 23.4 mm

Material specifications

Color blue
Flammability rating according to UL 94 V2
Insulating material PA
Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21)) 125 °C
Relative insulation material temperature index (Elec., UL 746 B) 125 °C
Fire protection for rail vehicles (DIN EN 45545-2) R22 HL 1 – HL 2
Fire protection for rail vehicles (DIN EN 45545-2) R23 HL 1 – HL 2
Fire protection for rail vehicles (DIN EN 45545-2) R24 HL 1 – HL 2

Electrical tests

Temperature-rise test
Requirement temperature-rise test Increase in temperature ≤ 45 K
Result Test passed
Short-time withstand current 4 mm² 0.48 kA
Result Test passed

Mechanical tests

Mechanical strength
Result Test passed

Test for conductor damage and slackening
Rotation speed 10 rpm
Revolutions 135
Conductor cross section/weight 0.5 mm² / 0.3 kg
4 mm² / 0.9 kg
6 mm² / 1.4 kg
Result Test passed

Environmental and real-life conditions

Ambient conditions
Ambient temperature (operation) -60 °C … 105 °C (max. short-term operating temperature RTI Elec.)
Ambient temperature (storage/transport) -25 °C … 60 °C (for a short time, not exceeding 24 h, -60 °C to +70 °C)
Ambient temperature (assembly) -5 °C … 70 °C
Ambient temperature (actuation) -5 °C … 70 °C
Permissible humidity (storage/transport) 30 % … 70 %

Mounting

Mounting type Neutral busbar

Muut tiedot

Tuotenumero 0421016
Pakkausyksikkö 50 Kappaletta
Tuoteavain BE7331
Tuotekoodi BE7331
GTIN 4017918001919
Paino kappaletta kohti (sis. pakkauksen) 5,5 g
Paino kappaletta kohti (ilman pakkausta) 5,4 g
Tullitariffinumero 85369010
Alkuperämaa IN
