Tekniset tiedot
Product properties

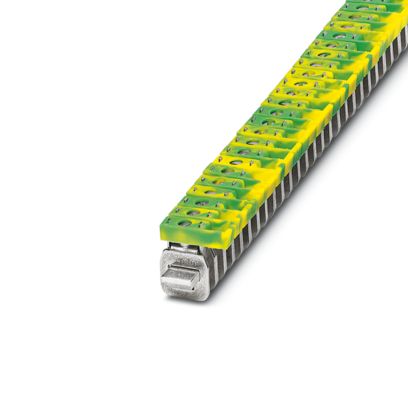

Product type Installation terminal block
Number of connections 1
Number of rows 1
Electrical properties
Maximum load current 41 A
Maximum power dissipation for nominal condition 1.02 W
Nominal current IN 32 A
Current carrying capacity of the neutral busbar 140 A
Connection data
Nominal cross section 4 mm²
Maximum load current 41 A
Cross section AWG (converted acc. to IEC)
Level 1 above 1 below 1
Screw thread M4
Tightening torque 1.5 … 1.8 Nm
Stripping length 16 mm
Conductor cross section rigid 0.5 mm² … 6 mm²
Cross section AWG 20 … 10 (converted acc. to IEC)
Conductor cross section flexible 0.5 mm² … 4 mm²
Conductor cross section, flexible [AWG] 20 … 12 (converted acc. to IEC)
Conductor cross-section flexible (ferrule without plastic sleeve) 0.5 mm² … 6 mm²
Flexible conductor cross section (ferrule with plastic sleeve) 0.5 mm² … 6 mm²
2 conductors with same cross section, solid 0.5 mm² … 2.5 mm²
2 conductors with same cross section, flexible 0.5 mm² … 2.5 mm²
2 conductors with same cross section, flexible, with ferrule without plastic sleeve 0.5 mm² … 2.5 mm²
2 conductors with the same cross section, flexible, with TWIN ferrule with plastic sleeve 0.5 mm² … 2.5 mm²
Nominal current 41 A
Maximum load current 41 A (with 6 mm² conductor cross section)
Nominal voltage 300 V
Nominal cross section 4 mm²
Dimensions
Width 7 mm
Height 23.4 mm
Depth 24 mm
Length 23.4 mm
Material specifications
Color green-yellow
Flammability rating according to UL 94 V2
Insulating material PA
Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21)) 125 °C
Relative insulation material temperature index (Elec., UL 746 B) 125 °C
Fire protection for rail vehicles (DIN EN 45545-2) R22 HL 1 – HL 2
Fire protection for rail vehicles (DIN EN 45545-2) R23 HL 1 – HL 2
Fire protection for rail vehicles (DIN EN 45545-2) R24 HL 1 – HL 2
Electrical tests
Temperature-rise test
Requirement temperature-rise test Increase in temperature ≤ 45 K
Result Test passed
Result Test passed
Environmental and real-life conditions
Ambient conditions
Ambient temperature (operation) -60 °C … 105 °C (max. short-term operating temperature RTI Elec.)
Ambient temperature (storage/transport) -25 °C … 60 °C (for a short time, not exceeding 24 h, -60 °C to +70 °C)
Ambient temperature (assembly) -5 °C … 70 °C
Ambient temperature (actuation) -5 °C … 70 °C
Permissible humidity (storage/transport) 30 % … 70 %
Mounting
Mounting type Neutral busbar
Muut tiedot
Tuotenumero 0421029
Pakkausyksikkö 50 Kappaletta
Tuoteavain BE7331
Tuotekoodi BE7331
GTIN 4017918001926
Paino kappaletta kohti (sis. pakkauksen) 5,462 g
Paino kappaletta kohti (ilman pakkausta) 5,4 g
Tullitariffinumero 85369010
Alkuperämaa IN
| Väri | kelta/vihreä |
|---|
