Tekniset tiedot
Notes
General For HEAVYCON housing type B6 to B48, HC-M-B…MF-… hinged module carrier frame required, CK1,6-ED… crimp contacts, crimp contacts not supplied as standard.
General Connectors may be operated only when there is no load/voltage.
Mounting
Assembly instructions To ensure correct use, installation in housing with IP54 protection or better is required
Product properties

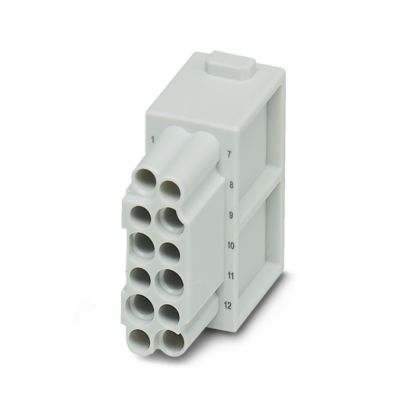

Product type Modular contact insert
Number of positions 12
Connection profile 12
Contact numbering 1 – 12
Application Signal
Number of module slots 1
No. of power contacts 0
No. of control contacts 12
Contact material type turned
rolled
Series HC-M-12
Insulation characteristics
Overvoltage category III
Degree of pollution 3
Connection data
Connection technology
Connection technology Crimp connection
Conductor connection
Conductor cross section 0.14 mm² … 2.5 mm²
Connection cross section AWG 26 … 14
Stripping length of the individual wire 8 mm (6 mm with 2.5 mm²)
Dimension
Width 34.2 mm
Height 34 mm
Length 14.6 mm
Mechanical characteristics
Minimum housing height 52 mm
Contact diameter 1.6 mm
Electrical properties
Rated voltage (III/3) 250 V
Rated surge voltage 4 kV
Rated current 10 A
Mechanical properties
Mechanical data
Insertion/withdrawal cycles ≥ 500
Material specifications
Flammability rating according to UL 94 V0
Contact material Copper alloy
Contact surface material Ag (alternatively Au)
Contact carrier material PC
Standards/regulations PC: Fire protection in rail vehicles – requirement sets R22, R23, and R24 acc. to DIN EN 45545-2 (Risk level HL1 – HL3)
Environmental and real-life conditions
Ambient conditions
Ambient temperature (operation) -40 °C … 125 °C (including heating up of contacts)
Standards and regulations
Testing
Standards/regulations PC: Fire protection in rail vehicles – requirement sets R22, R23, and R24 acc. to DIN EN 45545-2 (Risk level HL1 – HL3)
Muut tiedot
Tuotenumero 1414355
Pakkausyksikkö 5 Kappaletta
Tuoteavain BF7ACE
Tuotekoodi BF7ACE
GTIN 4055626024684
Paino kappaletta kohti (sis. pakkauksen) 9,58 g
Paino kappaletta kohti (ilman pakkausta) 9,46 g
Tullitariffinumero 85389099
Alkuperämaa PL
