Tekniset tiedot
Notes
General For HEAVYCON housing types B6 to B48, HC-M-B… snap-in frames and CUC-DSC-J1BAU-S/DSC.. crimp contacts in accordance with DIN 41652 are required. Crimp contacts are not supplied as standard.
General Connectors may be operated only when there is no load/voltage.
General The use of guide pins (HC-CST) and sockets (HC-CBU) is recommended to prevent tip collision due to misalignment.
Mounting
Assembly instructions To ensure correct use, installation in housing with IP54 protection or better is required
Connection method Crimp connection
Product properties

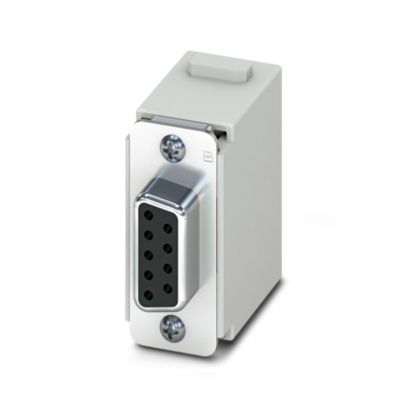

Product type Modular contact insert
Number of positions 9
Connection profile 9
Contact numbering 1 – 9
Application Data
Number of module slots 1
Type D-SUB 9
Contact material type turned
Series HC-M-DSUB-C
Insulation characteristics
Overvoltage category III
Degree of pollution 3
Connection data
Connection technology
Connection technology Crimp connection
Clamping range of the strain relief clip 4.00 mm … 7.00 mm
Conductor connection
Conductor cross section 0.08 mm² … 0.5 mm²
Connection cross section AWG 28 … 20
Stripping length of the individual wire 4.2 mm
Dimensions
Width 34.2 mm
Height 35.2 mm
Length 14.6 mm
Clamping range of the strain relief clip 4.00 mm … 7.00 mm
Mechanical characteristics
Minimum housing height 52 mm
Contact diameter 1 mm
Electrical properties
Rated voltage (III/3) 48 V
Rated surge voltage 0.8 kV
Rated current 1 A
Mechanical properties
Mechanical data
Insertion/withdrawal cycles ≥ 500
Material specifications
Material Zinc alloy
Flammability rating according to UL 94 V0
Contact material Copper alloy
Contact surface material Au
Contact carrier material PC
Standards/regulations PC: Fire protection in rail vehicles – requirement set R22 acc. to DIN EN 45545-2 (Risk level HL1 – HL2)
PC: Fire protection in rail vehicles – requirement set R23 acc. to DIN EN 45545-2 (Risk level HL1 – HL3)
Environmental and real-life conditions
Ambient conditions
Ambient temperature (operation) -40 °C … 125 °C
Standards and regulations
Testing
Standards/regulations PC: Fire protection in rail vehicles – requirement set R22 acc. to DIN EN 45545-2 (Risk level HL1 – HL2)
PC: Fire protection in rail vehicles – requirement set R23 acc. to DIN EN 45545-2 (Risk level HL1 – HL3)
Muut tiedot
Tuotenumero 1417308
Pakkausyksikkö 1 Kappaletta
Tuoteavain BF7ACE
Tuotekoodi BF7ACE
GTIN 4055626112503
Paino kappaletta kohti (sis. pakkauksen) 36 g
Paino kappaletta kohti (ilman pakkausta) 32 g
Tullitariffinumero 85389099
Alkuperämaa CN
