Tekniset tiedot
Notes
General Connectors may be operated only when there is no load/voltage.
General The use of guide pins (HC-CST) and sockets (HC-CBU) is recommended to prevent tip collision due to misalignment.
Mounting
Assembly instructions To ensure correct use, installation in housing with IP54 protection or better is required
Pin 8 = B
Pin 3 = A
Connection method Crimp connection
Product properties

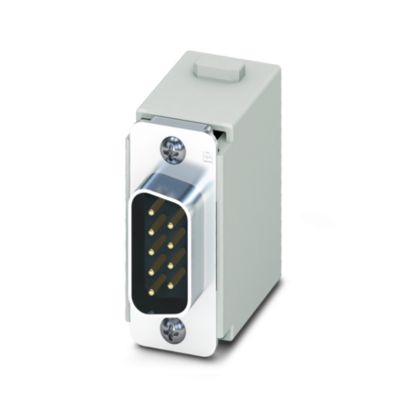

Product type Modular contact insert
Number of positions 9
Connection profile 9
Contact numbering 1 – 9
Application Data
Number of module slots 1
Type D-SUB 9
Contact material type turned
Series HC-M-DSUB-C
Insulation characteristics
Overvoltage category III
Degree of pollution 3
Connection data
Connection technology
Connection technology Crimp connection
Clamping range of the strain relief clip 4.00 mm … 7.00 mm
Conductor connection
Conductor cross section 0.08 mm² … 0.5 mm²
Connection cross section AWG 28 … 20
Stripping length of the individual wire 4.2 mm
Dimensions
Width 34.2 mm
Height 35.2 mm
Length 14.6 mm
Clamping range of the strain relief clip 4.00 mm … 7.00 mm
Mechanical characteristics
Minimum housing height 52 mm
Contact diameter 1 mm
Electrical properties
Rated voltage (III/3) 48 V
Rated surge voltage 0.8 kV
Rated current 1 A
Mechanical properties
Mechanical data
Insertion/withdrawal cycles ≥ 500
Material specifications
Material Zinc alloy
Flammability rating according to UL 94 V0
Contact material Copper alloy
Contact surface material Ag
Contact carrier material PC
Standards/regulations PC: Fire protection in rail vehicles – requirement set R22 acc. to DIN EN 45545-2 (Risk level HL1 – HL2)
PC: Fire protection in rail vehicles – requirement set R23 acc. to DIN EN 45545-2 (Risk level HL1 – HL3)
Environmental and real-life conditions
Ambient conditions
Ambient temperature (operation) -40 °C … 125 °C
Standards and regulations
Testing
Standards/regulations PC: Fire protection in rail vehicles – requirement set R22 acc. to DIN EN 45545-2 (Risk level HL1 – HL2)
PC: Fire protection in rail vehicles – requirement set R23 acc. to DIN EN 45545-2 (Risk level HL1 – HL3)
Muut tiedot
Tuotenumero 1417309
Pakkausyksikkö 1 Kappaletta
Tuoteavain BF7ACE
Tuotekoodi BF7ACE
GTIN 4055626112510
Paino kappaletta kohti (sis. pakkauksen) 35,2 g
Paino kappaletta kohti (ilman pakkausta) 35,2 g
Tullitariffinumero 85389099
Alkuperämaa CN
