General for HC-M-12, HC-M-17, HC-M-03/04, HC-M-EMV, HC-D, HC-DD, HC-Q, and VC-D contact carriers
Mounting
Assembly instructions At voltages of < 5 V and currents < 5 mA, gold-plated contacts are recommended. The quality of a crimp connection is determined by DIN EN 60352-2. Connection method Crimp connection Product properties

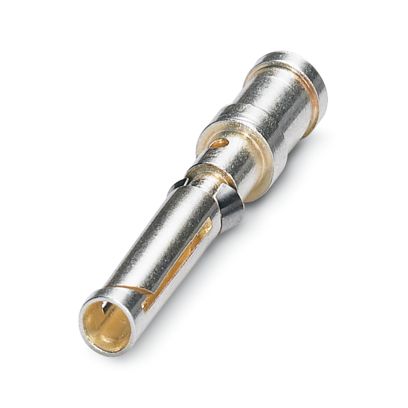

Product type Crimp contact
Type Individual female contact
Contact material type turned
Series HC-M-12
HC-M-EMV
HC-D
HC-DD
VC-D
HC-M-03/04
HC-M-17
HC-K
HC-Q
HC-COM
HC-M-42
Connection data
Connection method Crimp connection
Contact connection type Socket
Connection technology Crimp connection
Conductor cross section 1.5 mm² … 1.5 mm²
Connection cross section AWG 16
Stripping length of the individual wire 8 mm
Conductor cross section flexible 1.5 mm² … 1.5 mm²
Dimensions
Mechanical characteristics
Contact diameter 1.6 mm
Material specifications
Contact material Copper alloy
Contact surface material silver-plated
Mechanical properties
Mechanical data
Insertion/withdrawal cycles ≥ 500
Environmental and real-life conditions
Ambient conditions
Ambient temperature (operation) -40 °C … 125 °C
Muut tiedot
Tuotenumero 1663433
Pakkausyksikkö 100 Kappaletta
Tuoteavain BF7AIA
Tuotekoodi BF7AIA
GTIN 4017918123246
Paino kappaletta kohti (sis. pakkauksen) 0,746 g
Paino kappaletta kohti (ilman pakkausta) 0,663 g
Tullitariffinumero 85366990
Alkuperämaa DE
