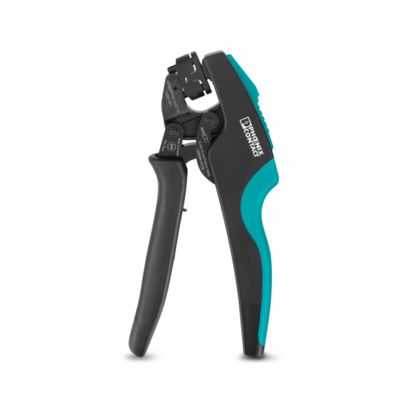

Crimping pliers
Crimping pliers, type of contact: Insulated and uninsulated ferrules, standards/specifications: DIN 46228-1, DIN 46228-4, min. cross section: 0.14 mm², max. cross section: 10 mm², for TWIN ferrules up to 2 x 4 mm², automatic cross section adjustment, rotating die, lateral and frontal insertion, compression: Trapezoidal crimp, black
Tekniset tiedot
Notes
General DIN 46228-1, DIN 46228-4
Environmental Product Compliance
California Proposition 65 Further information on California’s prop. 65 is available under ”Downloads” in the manufacturer’s declaration
Product properties
Product type Crimping tool
Compression Trapezoidal crimp
Crimping position 1
Min. cross section 0.14 mm²
Max. cross section 10 mm²
AWG min 26
AWG max 8
Electrical properties
Fuse DIN 46228-1, DIN 46228-4, UL 486F, form A, E, F
Connection data
Conductor connection
Cross section range, metric 0.14 mm² … 10 mm² (2 x 0.5 mm² … 2 x 4 mm²)
Cross section range AWG 26 … 8 (2 x AWG 20 … 12)
Dimensions
Width 65 mm
Height 25 mm
Length 180 mm
Material specifications
Color black/green
Material Steel with plastic handle
Muut tiedot
Tuotenumero 1031721
Pakkausyksikkö 1 Kappaletta
Tuoteavain BH3131
Tuotekoodi BH3131
GTIN 4055626535371
Paino kappaletta kohti (sis. pakkauksen) 385,2 g
Paino kappaletta kohti (ilman pakkausta) 351,5 g
Tullitariffinumero 82032000
Alkuperämaa SE
