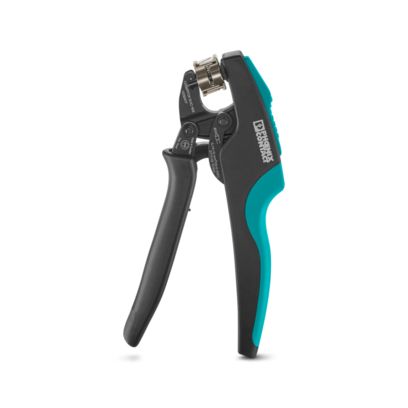

Crimping pliers
Crimping pliers, contact type: insulated and uninsulated ferrules, standards/regulations: DIN 46228-1, DIN 46228-4, UL 486F, Form A, E, F, cross-section, minimum: 0.14 mm2, cross-section, maximum: 16 mm2, for TWIN ferrules up to 2 mm2 x 6 mm2, automatic cross-section adjustment, rotating dies, lateral and front entry, crimping: square
Tekniset tiedot
Notes
General DIN 46228-1, DIN 46228-4, UL 486F, Form A, E, F
Product properties
Product type Crimping tool
Type of packaging Bag
Compression Square crimp
Crimping position 1
Min. cross section 16 mm²
Max. cross section 0.14 mm²
AWG min 26
AWG max 6
Electrical properties
Fuse DIN 46228-1, DIN 46228-4, UL 486F, form A, E, F
Connection data
Conductor connection
Cross section range, metric 0.14 mm² … 16 mm² (2 x 0.5 mm² … 2 x 6 mm²)
Cross section range AWG 26 … 6 (2 x AWG … 10)
Dimensions
Width 65 mm
Height 25 mm
Length 180 mm
Material specifications
Color black/green
Material Steel with plastic handle
Muut tiedot
Tuotenumero 1202877
Pakkausyksikkö 1 Kappaletta
Tuoteavain BH3131
Tuotekoodi BH3131
GTIN 4063151267674
Paino kappaletta kohti (sis. pakkauksen) 386,8 g
Paino kappaletta kohti (ilman pakkausta) 386,8 g
Tullitariffinumero 82032000
Alkuperämaa SE
