D-SUB bus connector

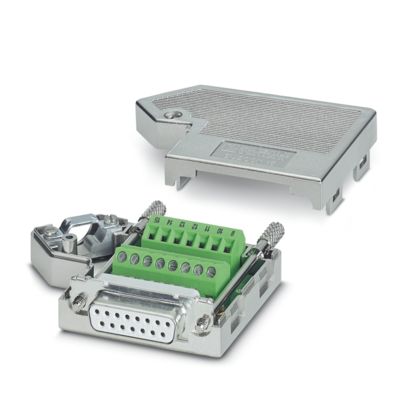

D-SUB connector, 15-pos. female connector, one 35° cable entry, universal type for all systems, pin assignment: 1, 2, 3, …, 14, 15 to screw connection terminal block
The range covers SUBCON plugs for point-to-point connections with a cable infeed in 9, 15 and 25-pos. male or female versions. The optional fastening screw SUBCON-SHORT-SCREW is available as an accessory for narrow installation conditions. The screw is completely integrated into the housing by not having a knurl.
Tekniset tiedot
Notes
Utilization restriction
CCCex note Use in potentially explosive areas is not permitted in China.
Product properties
Product type Data plug
MTTF 6706 Years (SN 29500 standard, temperature 25°C, operating cycle 21%)
1817 Years (SN 29500 standard, temperature 40°C, operating cycle 34.25%)
155 Years (SN 29500 standard, temperature 40°C, operating cycle 100%)
Pin assignment All connections are 1:1 on the screw terminal block
Electrical properties
Nominal voltage UN 50 V DC
Nominal current IN 100 mA
Transmission medium Copper
Dimensions
Width 16 mm
Height 55 mm
Length 65 mm
Material specifications
Material Housing ABS, metal-plated
Muut tiedot
Tuotenumero 2761596
Pakkausyksikkö 1 Kappaletta
Tuoteavain DNC511
Tuotekoodi DNC511
GTIN 4017918104818
Paino kappaletta kohti (sis. pakkauksen) 79,2 g
Paino kappaletta kohti (ilman pakkausta) 67,1 g
Tullitariffinumero 85366990
Alkuperämaa DE
