Tekniset tiedot
Notes
General Test voltage only in combination with contact insert, Item no.: 1688858.
Mounting
Mounting type Crimp connection
Connection method Crimp connection
Product properties

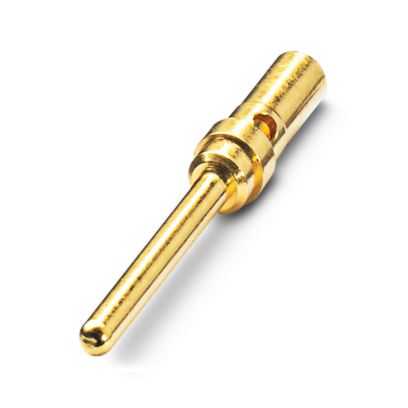

Product type Crimp contact
Type Individual male contact
Contact material type turned
Series HC-M-DSUB-C / HC-M-08-GBIT / HC-M-25 / HC-M-EMV
Connection data
Connection method Crimp connection
Contact connection type Pin
Connection technology Crimp connection
Conductor cross section 0.2 mm² … 0.5 mm²
Connection cross section AWG 24 … 20
Material specifications
Material Metal
Contact material Copper alloy
Contact surface material 0.2 µm, gold over nickel
Dimensions
Width 1.68 mm
Height 1.68 mm
Length 14 mm
Mechanical characteristics
Contact diameter 1 mm
Electrical properties
Maximum load current 5 A
Rated surge voltage 1.2 kV
1.2 kV (1 min.)
Rated current 5 A (at 20 °C)
Test voltage 1500 V
Mechanical properties
Mechanical data
Insertion/withdrawal cycles ≥ 200
Insertion force per signal contact ≤ 3.40 N
Environmental and real-life conditions
Ambient conditions
Ambient temperature (operation) -55 °C … 130 °C
Muut tiedot
Tuotenumero 1418786
Pakkausyksikkö 100 Kappaletta
Tuoteavain ABNCAC
Tuotekoodi ABNCAC
GTIN 4055626150734
Paino kappaletta kohti (sis. pakkauksen) 0,165 g
Paino kappaletta kohti (ilman pakkausta) 0,139 g
Tullitariffinumero 85366990
Alkuperämaa CH
