Tekniset tiedot
Notes
General Test voltage only in combination with contact insert, Item no.: 1688861.
Product properties

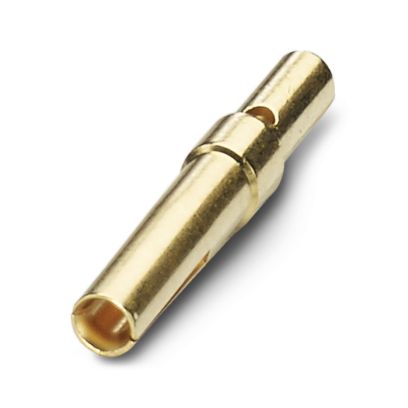

Product type Contacts
Type Individual female contact
Contact material type turned
Series HC-M-DSUB-C / HC-M-08-GBIT / HC-M-25 / HC-M-EMV
Electrical properties
Maximum load current 5 A
Rated surge voltage 1.2 kV
1.2 kV (1 min.)
Rated current 5 A (at 20 °C)
Test voltage 1500 V
Connection data
Maximum load current 5 A
Connection method Crimp connection
Cross section AWG (converted acc. to IEC)
Dimensions
Width 1.7 mm
Height 1.7 mm
Length 13.7 mm
Mechanical characteristics
Contact diameter 1 mm
Mechanical properties
Mechanical data
Insertion/withdrawal cycles ≥ 200
Insertion force per signal contact ≤ 3.40 N
Environmental and real-life conditions
Ambient conditions
Ambient temperature (operation) -55 °C … 130 °C
Standards and regulations
Standards/specifications DIN 41652
Mounting
Mounting type Crimp connection
Connection method Crimp connection
Muut tiedot
Tuotenumero 1418788
Pakkausyksikkö 100 Kappaletta
Tuoteavain ABNCAC
Tuotekoodi ABNCAC
GTIN 4055626150758
Paino kappaletta kohti (sis. pakkauksen) 0,238 g
Paino kappaletta kohti (ilman pakkausta) 0,211 g
Tullitariffinumero 85366990
Alkuperämaa CH
