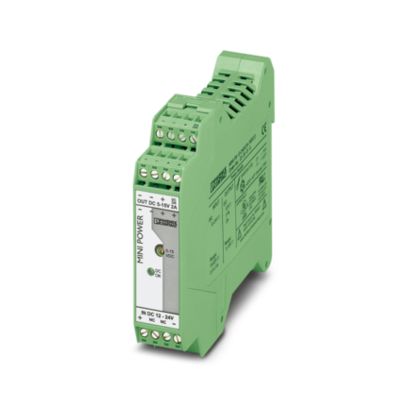

DC/DC converters

Tekniset tiedot

Input data

DC operation
Nominal input voltage range 12 V DC … 24 V DC
Input voltage range 10 V DC … 32 V DC (> 10.5 V DC start)
Wide-range input yes
Input voltage range DC 10 V DC … 32 V DC (> 10.5 V DC start)
Voltage type of supply voltage DC
Inrush current < 10 A (typical) Inrush current integral (I2t) 0.2 A2s Frequency range DC 0 Hz Mains buffering time typ. 4 ms (12 V DC) typ. 18 ms (24 V DC) Current consumption 2.3 A (12 V DC) 1.1 A (24 V DC) Typical response time < 0.5 s Input fuse 6.3 A (slow-blow, internal) Output data

Efficiency > 88 % (at 24 V DC and nominal values)
Output characteristic U/I
Nominal output voltage 12 V DC ±1 %
Setting range of the output voltage (USet) 5 V DC … 15 V DC
Nominal output current (IN) 2 A (-25 °C … 60 °C)
Derating 60 °C … 70 °C (2.5%/K)
Feedback voltage resistance 30 V DC
Protection against overvoltage at the output (OVP) < 25 V DC Residual ripple < 20 mVPP (20 MHz) Output power 24 W Peak switching voltages nominal load < 10 mVPP (20 MHz) Maximum no-load power dissipation < 1 W Power loss nominal load max. < 4.2 W Connection in parallel yes, for assembling redundant systems and increasing efficiency Connection in series yes Signal: DC OK active
Output description UOUT > 0.9 x UN: High signal
Continuous load current ≤ 20 mA

Connection data

Input
Connection method Pluggable screw connection
Conductor cross section, rigid min. 0.2 mm²
Conductor cross section, rigid max. 2.5 mm²
Conductor cross section flexible min. 0.2 mm²
Conductor cross section flexible max. 2.5 mm²
Conductor cross section AWG min. 24
Conductor cross section AWG max. 14
Stripping length 7 mm
Screw thread M3
Tightening torque, min 0.5 Nm
Tightening torque max 0.6 Nm

Output
Connection method Pluggable screw connection
Conductor cross section, rigid min. 0.2 mm²
Conductor cross section, rigid max. 2.5 mm²
Conductor cross section flexible min. 0.2 mm²
Conductor cross section flexible max. 2.5 mm²
Conductor cross section AWG min. 24
Conductor cross section AWG max. 14
Stripping length 7 mm
Screw thread M3
Tightening torque, min 0.5 Nm
Tightening torque max 0.6 Nm

Signal
Conductor cross section, rigid min. 0.2 mm²
Conductor cross section, rigid max. 2.5 mm²
Conductor cross section flexible min. 0.2 mm²
Conductor cross section flexible max. 2.5 mm²
Conductor cross section AWG min. 24
Conductor cross section AWG max. 14
Screw thread M3
Tightening torque, min 0.5 Nm
Tightening torque max 0.6 Nm

Signaling

Types of signaling LED
Active switching output
Signal output: DC OK active

Status display ”DC OK” LED green
Note on status display UOUT > 0.9 x UN: LED ON
Color green
Note on status display LED on

Electrical properties

Number of phases 1.00
Insulation voltage input/output 1.5 kV (type test)
1 kV (routine test)

Product properties

Product type DC/DC converters
MTBF (IEC 61709, SN 29500) > 2072000 h (40 °C)

Insulation characteristics
Protection class III
Degree of pollution 2

Dimensions

Width 22.5 mm
Height 99 mm
Depth 107 mm

Installation dimensions
Installation distance right/left 0 mm / 0 mm (≤ 70 °C)
Installation distance top/bottom 50 mm / 50 mm (≤ 70 °C)

Mounting

Assembly instructions alignable: horizontally 0 mm, vertically 50 mm
Mounting position horizontal DIN rail NS 35, EN 60715
With protective coating No

Material specifications

Housing material Plastic
Type of housing Polyamide PA, color: green
Housing material Polyamide (PA)

Environmental and real-life conditions

Ambient conditions
Degree of protection IP20
Ambient temperature (operation) -25 °C … 70 °C (> +60°C derating)
Ambient temperature (storage/transport) -40 °C … 85 °C
Climatic class 3K3 (in acc. with EN 60721)
Max. permissible relative humidity (operation) ≤ 95 % (At +25°C, non-condensing)
Shock 18 ms, 30g, in each space direction (according to IEC 60068-2-27)
Vibration (operation) < 15 Hz, amplitude ±2.5 mm (according to IEC 60068-2-6) 15 Hz ... 150 Hz, 2.3g Standards and regulations

Rail applications EN 50121-4
Standard – Electronic equipment for use in electrical power installations and their assembly into electrical power installations EN 50178/VDE 0160 (PELV)
Standard – Electrical safety EN 60950-1/VDE 0805 (SELV)
Standard – Safe isolation DIN VDE 0100-410
DIN VDE 0106-101

Approvals

CSA CSA-C22.2 No. 107.1-01
UL approvals UL/C-UL listed UL 508
UL/C-UL Recognized UL 60950-1
UL ANSI/ISA-12.12.01 Class I, Division 2, Groups A, B, C, D (Hazardous Location)

EMC data

Low Voltage Directive Conformance with Low Voltage Directive 2014/35/EC
EMC requirements for noise emission EN 61000-6-3
EN 61000-6-4
EMC requirements for noise immunity EN 61000-6-1
EN 61000-6-2
Electromagnetic compatibility Conformance with EMC Directive 2014/30/EU
Noise emission EN 55011 (EN 55022)

Electrostatic discharge
Standards/regulations EN 61000-4-2
Housing > Level 3

Electrostatic discharge
Contact discharge 8 kV (Contact discharge)
Discharge in air 8 kV (Air discharge)
Comments Criterion B

Electromagnetic HF field
Standards/regulations EN 61000-4-3

Electromagnetic HF field
Frequency range 80 MHz … 3 GHz
Test field strength 10 V/m
Comments Criterion A

Fast transients (burst)
Standards/regulations EN 61000-4-4

Fast transients (burst)
Input 4 kV (level 4 – asymmetrical: conductor to ground)
Output 2 kV (level 3 – asymmetrical: conductor to ground)
Signal 1 kV (Level 2 – asymmetrical cable to ground)
Comments Criterion B

Surge voltage load (surge)
Standards/regulations EN 61000-4-5

Conducted interference
Standards/regulations EN 61000-4-6

Conducted interference
Input/Output Level 3
Frequency range 0.15 MHz … 80 MHz (10 V)

Voltage dips
Standards/regulations EN 61000-4-11

Emitted interference
Standards/regulations EN 61000-6-3
Radio interference voltage in acc. with EN 55011 EN 55011 (EN 55022) Class B, area of application: Industry and residential
Emitted radio interference in acc. with EN 55011 EN 55011 (EN 55022) Class B, area of application: Industry and residential

Muut tiedot

Tuotenumero 2320018
Pakkausyksikkö 1 Kappaletta
Tuoteavain CMDM42
Tuotekoodi CMDM42
GTIN 4046356478519
Paino kappaletta kohti (sis. pakkauksen) 230 g
Paino kappaletta kohti (ilman pakkausta) 200 g
Tullitariffinumero 85044095
Alkuperämaa CN
