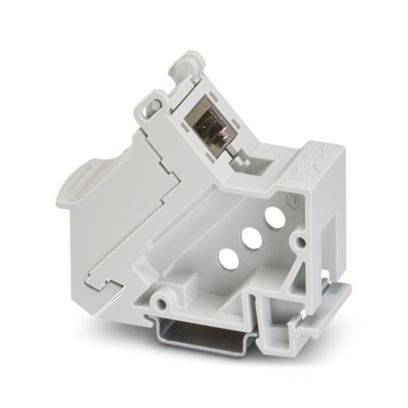

DIN rail adapter
DIN rail adapter with RJ45 module for the connection and distribution of Ethernet cables
DIN rail adapter, type: RJ45, degree of protection: IP20, number of positions: 8, 10 Gbps, CAT6A, material: PC-GF, connection method: IDC connection, connection cross section: AWG 26- 22, color: gray
Tekniset tiedot
Product properties
Type Rail-mountable module
Product type Patch panel
Number of positions 8
Connection profile RJ45
Number of slots 1
Housing type DIN rail adapter
Electrical properties
Rated voltage (III/3) 72 V (DC)
Frequency range 500 MHz
Insulation resistance > 500 MΩ (100 V DC)
Nominal voltage UN 72 V (DC)
Nominal current IN 1.5 A
Connection data
Connection method IDC connection
Dimensions
Width 26.8 mm
Height 71 mm
Length 81.4 mm
Material specifications
Color gray
Flammability rating according to UL 94 V0
Contact material CuSn
Contact surface material Gold over nickel
Contact carrier material Die-cast zinc alloy
Material, protective cover PC
Housing material PC-GF
Cable/line
External cable diameter () 4.5 mm … 9 mm
Wire diameter 0.4 mm … 0.65 mm
Wire diameter including insulation 0.8 mm … 1.6 mm
Mechanical properties
Mechanical data
Insertion/withdrawal cycles ≥ 750
Environmental and real-life conditions
Ambient conditions
Degree of protection IP20
IP20
Ambient temperature (operation) -25 °C … 70 °C
Ambient temperature (storage/transport) -40 °C … 70 °C
Mounting
Mounting type DIN rail mounting
Connection method IDC connection
Muut tiedot
Tuotenumero 1419024
Pakkausyksikkö 1 Kappaletta
Tuoteavain ABNAHA
Tuotekoodi ABNMAY
GTIN 4055626251462
Paino kappaletta kohti (sis. pakkauksen) 61,3 g
Paino kappaletta kohti (ilman pakkausta) 59,5 g
Tullitariffinumero 85366990
Alkuperämaa CH
| Väri | harmaa |
|---|
