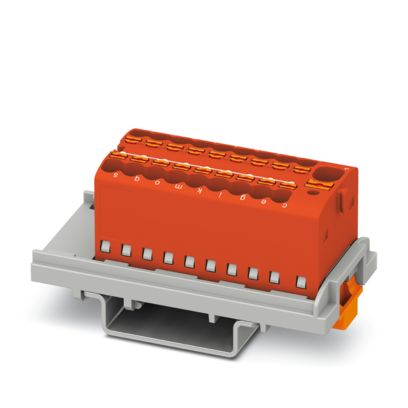

Distribution block

Tekniset tiedot

Notes

General
Note The maximum load current of a single clamping unit must not be exceeded.
For power distribution applications, IEC 60364-4-43.2008; modified + corrigendum Okt. 2008 (DIN VDE 0100-430:2010-10) section 433.2 ff must be observed!

Product properties

Product type Distributor terminal block
Number of connections 19
Number of rows 1

Insulation characteristics
Overvoltage category III
Degree of pollution 3

Electrical properties

Rated surge voltage 6 kV
Maximum power dissipation for nominal condition 0.56 W

Dimensions

Width 21.6 mm
Height 58.1 mm
Depth on NS 15 26.4 mm
Depth on NS 35/7,5 28.4 mm

Material specifications

Color red
Flammability rating according to UL 94 V0
Insulating material group I
Insulating material PA
Static insulating material application in cold -60 °C
Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21)) 125 °C
Relative insulation material temperature index (Elec., UL 746 B) 130 °C
Fire protection for rail vehicles (DIN EN 45545-2) R22 HL 1 – HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R23 HL 1 – HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R24 HL 1 – HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R26 HL 1 – HL 3
Calorimetric heat release NFPA 130 (ASTM E 1354) 27,5 MJ/kg
Surface flammability NFPA 130 (ASTM E 162) passed
Specific optical density of smoke NFPA 130 (ASTM E 662) passed
Smoke gas toxicity NFPA 130 (SMP 800C) passed

Muut tiedot

Tuotenumero 1047456
Pakkausyksikkö 20 Kappaletta
Tuoteavain BEA124
Tuotekoodi BEA124
GTIN 4055626665610
Paino kappaletta kohti (sis. pakkauksen) 23,422 g
Paino kappaletta kohti (ilman pakkausta) 22,86 g
Tullitariffinumero 85369010
Alkuperämaa PL
