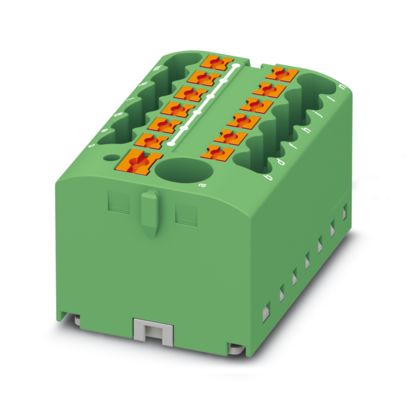

Distribution block

Tekniset tiedot

Notes

General the blocks can be bridged with one another via the conductor shaft, for corresponding plug-in bridges, see accessories

General
Note The maximum load current of a single clamping unit must not be exceeded.
For power distribution applications, IEC 60364-4-43.2008; modified + corrigendum Okt. 2008 (DIN VDE 0100-430:2010-10) section 433.2 ff must be observed!

Product properties

Product type Distributor terminal block
Number of connections 13
Number of rows 1
Potentials 1

Insulation characteristics
Overvoltage category III
Degree of pollution 3

Electrical properties

Rated surge voltage 6 kV
Maximum power dissipation for nominal condition 0.77 W

Dimensions

Width 41 mm
Height 28.6 mm
Depth 22.7 mm

Material specifications

Color green
Flammability rating according to UL 94 V0
Insulating material group I
Insulating material PA
Static insulating material application in cold -60 °C
Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21)) 130 °C
Relative insulation material temperature index (Elec., UL 746 B) 130 °C
Fire protection for rail vehicles (DIN EN 45545-2) R22 HL 1 – HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R23 HL 1 – HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R24 HL 1 – HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R26 HL 1 – HL 3
Calorimetric heat release NFPA 130 (ASTM E 1354) 28 MJ/kg
Surface flammability NFPA 130 (ASTM E 162) passed
Specific optical density of smoke NFPA 130 (ASTM E 662) passed
Smoke gas toxicity NFPA 130 (SMP 800C) passed

Muut tiedot

Tuotenumero 3273490
Pakkausyksikkö 8 Kappaletta
Tuoteavain BEA123
Tuotekoodi BEA123
GTIN 4055626393216
Paino kappaletta kohti (sis. pakkauksen) 31,165 g
Paino kappaletta kohti (ilman pakkausta) 31 g
Tullitariffinumero 85369010
Alkuperämaa PL
