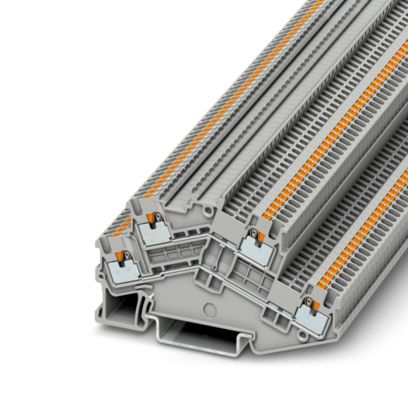

Double-level terminal block

Tekniset tiedot

Product properties

Product type Multi-level terminal block
Product family PTTBS
Number of connections 4
Number of rows 2
Potentials 2

Insulation characteristics
Overvoltage category III

Electrical properties

Rated surge voltage 6 kV
Maximum power dissipation for nominal condition 0.56 W

Dimensions

Width 3.5 mm
End cover width 2.2 mm
Height 78.8 mm
Depth on NS 35/7,5 48.2 mm
Depth on NS 35/15 55.7 mm

Material specifications

Color gray
Flammability rating according to UL 94 V0
Insulating material group I
Insulating material PA
Static insulating material application in cold -60 °C
Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21)) 130 °C
Relative insulation material temperature index (Elec., UL 746 B) 130 °C
Fire protection for rail vehicles (DIN EN 45545-2) R22 HL 1 – HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R23 HL 1 – HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R24 HL 1 – HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R26 HL 1 – HL 3
Calorimetric heat release NFPA 130 (ASTM E 1354) 28 MJ/kg
Surface flammability NFPA 130 (ASTM E 162) passed
Specific optical density of smoke NFPA 130 (ASTM E 662) passed
Smoke gas toxicity NFPA 130 (SMP 800C) passed

Muut tiedot

Tuotenumero 3214657
Pakkausyksikkö 50 Kappaletta
Tuoteavain BE2214
Tuotekoodi BE2214
GTIN 4046356616133
Paino kappaletta kohti (sis. pakkauksen) 7,95 g
Paino kappaletta kohti (ilman pakkausta) 7,891 g
Tullitariffinumero 85369010
Alkuperämaa PL
