Tekniset tiedot
Product properties

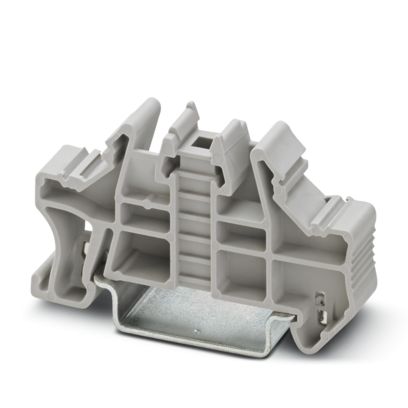

Product type End bracket
Connection data
Cross section AWG (converted acc. to IEC)
Dimensions
Width 9.5 mm
Height 55.6 mm
Depth on NS 35/7,5 35.5 mm
Length 55.6 mm
Material specifications
Color gray
Material PA
Flammability rating according to UL 94 V2
Static insulating material application in cold -60 °C
Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21)) 125 °C
Relative insulation material temperature index (Elec., UL 746 B) 125 °C
Fire protection for rail vehicles (DIN EN 45545-2) R22 HL 1 – HL 2
Fire protection for rail vehicles (DIN EN 45545-2) R23 HL 1 – HL 2
Fire protection for rail vehicles (DIN EN 45545-2) R24 HL 1 – HL 2
Environmental and real-life conditions
Ambient conditions
Ambient temperature (operation) -60 °C … 105 °C (max. short-term operating temperature RTI Elec.)
Ambient temperature (storage/transport) -25 °C … 60 °C (for a short time, not exceeding 24 h, -60 °C to +70 °C)
Ambient temperature (assembly) -5 °C … 70 °C
Ambient temperature (actuation) -5 °C … 70 °C
Permissible humidity (storage/transport) 30 % … 70 %
Mounting
Mounting type NS 35/7,5
NS 35/15
Muut tiedot
Tuotenumero 3022218
Pakkausyksikkö 50 Kappaletta
Tuoteavain BE7111
Tuotekoodi BE7111
GTIN 4017918156541
Paino kappaletta kohti (sis. pakkauksen) 5,268 g
Paino kappaletta kohti (ilman pakkausta) 5,1 g
Tullitariffinumero 39269097
Alkuperämaa PL
| Väri | harmaa |
|---|
