Tekniset tiedot
Product properties

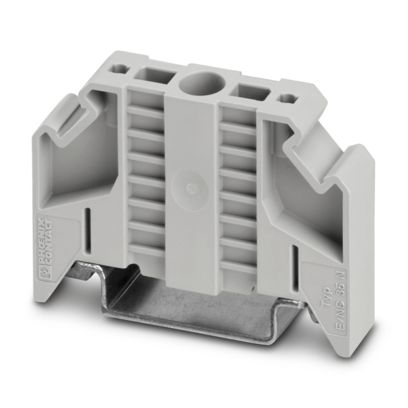

Product type End bracket
Connection data
Screw thread M3
Tightening torque 0.5 … 0.8 Nm
Dimension
Width 9.5 mm
Height 48.6 mm
Depth 32.8 mm
Depth on NS 35/7,5 34.3 mm
Length 48.6 mm
Material specifications
Color gray
Material PA
Flammability rating according to UL 94 V0
Static insulating material application in cold -60 °C
Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21)) 125 °C
Relative insulation material temperature index (Elec., UL 746 B) 130 °C
Environmental and real-life conditions
Ambient conditions
Ambient temperature (operation) -60 °C … 105 °C (max. short-term operating temperature RTI Elec.)
Ambient temperature (storage/transport) -25 °C … 60 °C (for a short time, not exceeding 24 h, -60 °C to +70 °C)
Ambient temperature (assembly) -5 °C … 70 °C
Ambient temperature (actuation) -5 °C … 70 °C
Permissible humidity (storage/transport) 30 % … 70 %
Mounting
Mounting type NS 35/7,5
NS 35/15
Muut tiedot
Tuotenumero 0800886
Pakkausyksikkö 50 Kappaletta
Tuoteavain BE7111
Tuotekoodi BE7111
GTIN 4017918129309
Paino kappaletta kohti (sis. pakkauksen) 14,08 g
Paino kappaletta kohti (ilman pakkausta) 14,08 g
Tullitariffinumero 39269097
Alkuperämaa DE
| Väri | harmaa |
|---|
