Tekniset tiedot
Product properties

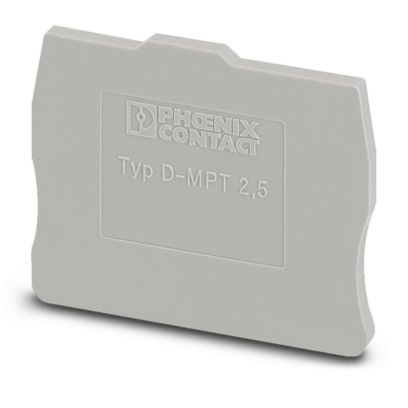

Product type End cover
Environmental and real-life conditions
Ambient conditions
Ambient temperature (operation) -60 °C … 105 °C (max. short-term operating temperature RTI Elec.)
Ambient temperature (storage/transport) -25 °C … 60 °C (for a short time, not exceeding 24 h, -60 °C to +70 °C)
Ambient temperature (assembly) -5 °C … 70 °C
Ambient temperature (actuation) -5 °C … 70 °C
Permissible humidity (storage/transport) 30 % … 70 %
Material specifications
Color gray
Material PA
Flammability rating according to UL 94 V0
Static insulating material application in cold -60 °C
Relative insulation material temperature index (Elec., UL 746 B) 130 °C
Fire protection for rail vehicles (DIN EN 45545-2) R22 HL 1 – HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R23 HL 1 – HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R24 HL 1 – HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R26 HL 1 – HL 3
Surface flammability NFPA 130 (ASTM E 162) passed
Specific optical density of smoke NFPA 130 (ASTM E 662) passed
Smoke gas toxicity NFPA 130 (SMP 800C) passed
Dimensions
Width 2.2 mm
End cover width 2.2 mm
Height 36 mm
Depth 27.1 mm
Depth on NS 15 32.3 mm
Muut tiedot
Tuotenumero 3248140
Pakkausyksikkö 50 Kappaletta
Tuoteavain BE2Z1X
Tuotekoodi BE2Z1X
GTIN 4046356768740
Paino kappaletta kohti (sis. pakkauksen) 1,336 g
Paino kappaletta kohti (ilman pakkausta) 1,328 g
Tullitariffinumero 85389099
Alkuperämaa PL
| Väri | harmaa |
|---|
