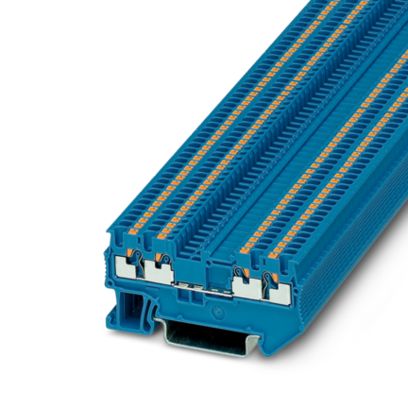

Feed-through terminal block

Tekniset tiedot

Product properties

Product type Multi-conductor terminal block
Area of application Railway industry
Machine building
Plant engineering
Number of connections 4
Number of rows 1
Potentials 1

Insulation characteristics
Overvoltage category III
Degree of pollution 3

Electrical properties

Rated surge voltage 6 kV
Maximum power dissipation for nominal condition 0.56 W

Connection data

Number of connections per level 4
Nominal cross section 1.5 mm²

1 level
Stripping length 8 mm … 10 mm
Internal cylindrical gage A1 / B1
Connection in acc. with standard IEC 60947-7-1
Conductor cross section rigid 0.14 mm² … 1.5 mm²
Cross section AWG 26 … 16 (converted acc. to IEC)
Conductor cross section flexible 0.14 mm² … 1.5 mm²
Conductor cross section, flexible [AWG] 26 … 16 (converted acc. to IEC)
Conductor cross-section flexible (ferrule without plastic sleeve) 0.14 mm² … 1.5 mm²
Flexible conductor cross section (ferrule with plastic sleeve) 0.14 mm² … 1 mm² Using the AI-S 1-8 TQ ferrule, Item No. 1200293, is recommended
Nominal current 17.5 A
Maximum load current 17.5 A
Nominal voltage 500 V
Nominal cross section 1.5 mm²

1 level Connection cross sections directly pluggable
Conductor cross section rigid 0.25 mm² … 1.5 mm²
Conductor cross-section flexible (ferrule without plastic sleeve) 0.34 mm² … 1.5 mm²
Flexible conductor cross section (ferrule with plastic sleeve) 0.34 mm² … 1 mm²

Ex data

Rated data (ATEX/IECEx)
Identification  II 2 GD Ex eb IIC Gb
Operating temperature range -60 °C … 110 °C
Ex-certified accessories 3208375 D-PT 1,5/S-QUATTRO
3030815 ATP-ST QUATTRO
1204504 SZF 0-0,4X2,5
3022276 CLIPFIX 35-5
3022218 CLIPFIX 35
List of bridges Plug-in bridge / FBS 2-3,5 / 3213014
Plug-in bridge / FBS 3-3,5 / 3213027
Plug-in bridge / FBS 4-3,5 / 3213030
Plug-in bridge / FBS 5-3,5 / 3213043
Plug-in bridge / FBS 10-3,5 / 3213056
Plug-in bridge / FBS 20-3,5 / 3213069
Bridge data 14.5 A / 1.5 mm²
Ex temperature increase 40 K (15 A / 1.5 mm²)
Rated voltage 352 V
for bridging with bridge 352 V
– At bridging between non-adjacent terminal blocks 220 V
– At bridging between non-adjacent terminal blocks via PE terminal block 220 V
– At cut-to-length bridging 166 V
– At cut-to-length bridging with cover 275 V
– At cut-to-length bridging with partition plate 352 V
Rated insulation voltage 320 V
output (Permanent)

Ex level General
Rated current 15 A
Maximum load current 15 A
Contact resistance 1.5 mΩ

Ex connection data General
Nominal cross section 1.5 mm²
Rated cross section AWG 16
Connection capacity rigid 0.14 mm² … 1.5 mm²
Connection capacity AWG 26 … 16
Connection capacity flexible 0.14 mm² … 1.5 mm²
Connection capacity AWG 26 … 16

Dimensions

Width 3.5 mm
End cover width 2.2 mm
Height 63.2 mm
Depth 30.5 mm
Depth on NS 35/7,5 32 mm
Depth on NS 35/15 39.5 mm

Material specifications

Color blue
Flammability rating according to UL 94 V0
Insulating material group I
Insulating material PA
Static insulating material application in cold -60 °C
Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21)) 130 °C
Relative insulation material temperature index (Elec., UL 746 B) 130 °C
Fire protection for rail vehicles (DIN EN 45545-2) R22 HL 1 – HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R23 HL 1 – HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R24 HL 1 – HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R26 HL 1 – HL 3
Calorimetric heat release NFPA 130 (ASTM E 1354) 28 MJ/kg
Surface flammability NFPA 130 (ASTM E 162) passed
Specific optical density of smoke NFPA 130 (ASTM E 662) passed
Smoke gas toxicity NFPA 130 (SMP 800C) passed

Mechanical properties

Mechanical data
Open side panel Yes

Environmental and real-life conditions

Ambient conditions
Ambient temperature (operation) -60 °C … 110 °C (Operating temperature range incl. self-heating; for max. short-term operating temperature, see RTI Elec.)
Ambient temperature (storage/transport) -25 °C … 60 °C (for a short time, no longer than 24 h, -60°C to +70°C)
Ambient temperature (assembly) -5 °C … 70 °C
Ambient temperature (actuation) -5 °C … 70 °C
Permissible humidity (operation) 20 % … 90 %
Permissible humidity (storage/transport) 30 % … 70 %

Standards and regulations

Connection in acc. with standard IEC 60947-7-1

Mounting

Mounting type NS 35/7,5
NS 35/15

Muut tiedot

Tuotenumero 3208208
Pakkausyksikkö 50 Kappaletta
Tuoteavain BE2213
Tuotekoodi BE2213
GTIN 4046356564311
Paino kappaletta kohti (sis. pakkauksen) 5,238 g
Paino kappaletta kohti (ilman pakkausta) 5,238 g
Tullitariffinumero 85369010
Alkuperämaa DE
