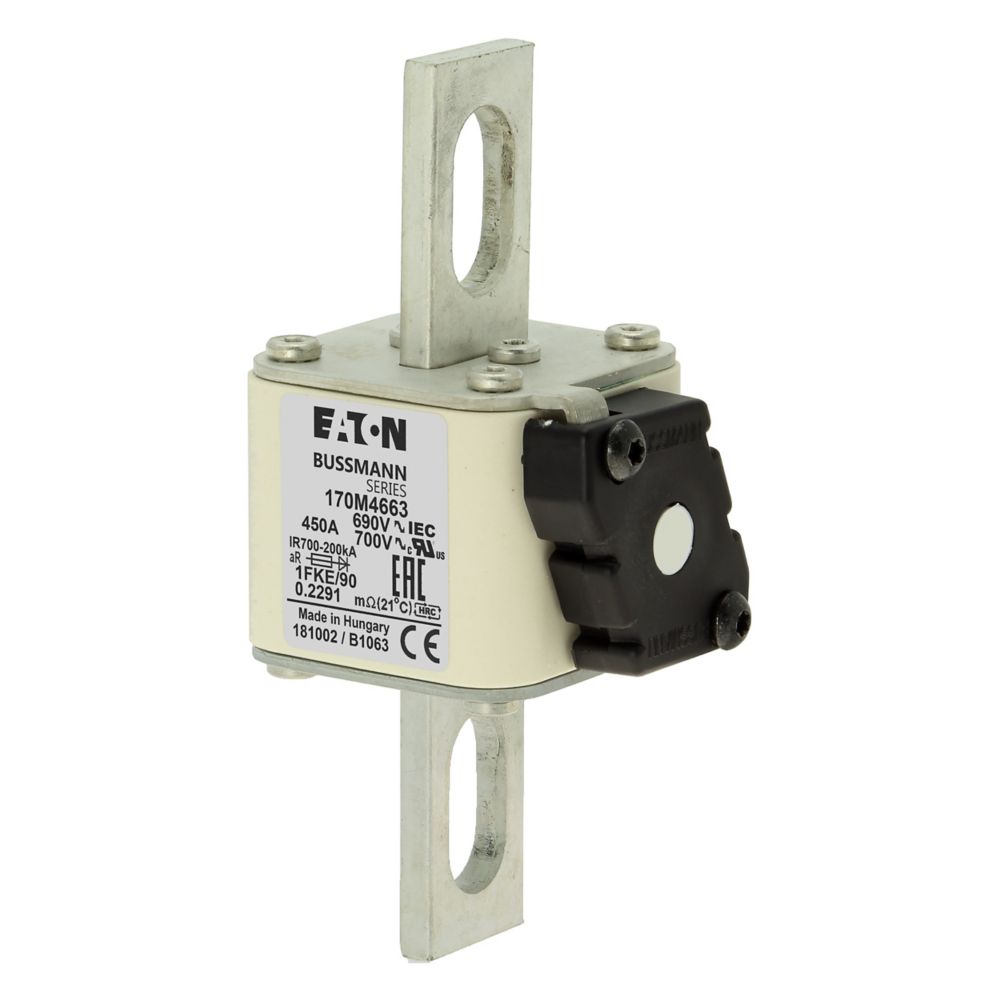

FUSE 450A 690V 1FKE/90 AR UC

GENERAL SPECIFICATIONS

PRODUCT NAME
Eaton Bussmann series high speed square body fuse

CATALOG NUMBER
170M4663

MODEL CODE
FUSE 450A 690V 1FKE/90 AR UC

UPC
051712259446

EAN
5027590453806

PRODUCT LENGTH/DEPTH
245 mm

PRODUCT HEIGHT
62 mm

PRODUCT WIDTH
142 mm

PRODUCT WEIGHT
164 g

WARRANTY
Not Applicable

COMPLIANCES
CE Marked
RoHS Compliant

CERTIFICATIONS
IEC Rated
UL Recognized

PRODUCT SPECIFICATIONS
TYPE
Fuse

APPLICATION
Semiconductor, DC Common bus, DC drives, power converters/rectifiers

AMPERAGE RATING
450 A

BREAKING CAPACITY
200 kA

FUSE INDICATOR
Centre fuse status indicator

INSULATED METAL GRIPPING LUGS (IMGL)
No

UTILIZATION CATEGORY
aR (accompanied semiconductor protection)

VOLTAGE TYPE
AC

FUSE SIZE
1

RATED VOLTAGE AC
690 V

CENTER-TO-CENTER DISTANCE OF CONNECTIONS
91 mm

CURRENT TYPE
AC

MOUNTING DIMENSION
M12

CLASS
Class aR

CLEARING (I2T)
120000 at 660 V

WATT LOSSES
70 W

FUSE SHAPE
Square body, center bolted tags

PRE ARC (I2T)
17000

COLOR
None

INTERRUPT RATING
200 kAIC

FITTED WITH:
Type K Indicator for micro

CONNECTION
Blade end x blade end

CONSTRUCTION SIZE
1

PACKAGING TYPE
Standard

VOLTAGE RATING
690 V

FUSE TYPE
US Style
FKE/Type K indicator for micro

FUSE SYSTEM (ACCORDING TO IEC 60269)
Other
