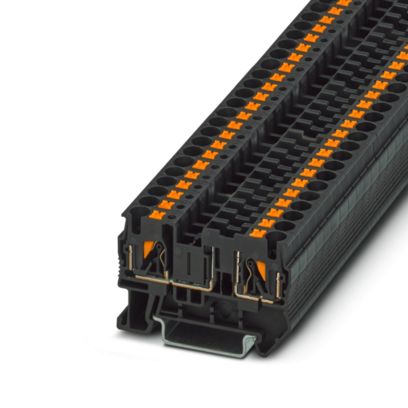

Fuse modular terminal block
Fuse modular terminal block, fuse type: Flat, connection method: Push-in connection, cross section: 0.2 mm²- 6 mm², AWG: 24 – 10, nominal current: 10 A, nom. voltage: 400 V, width: 6.2 mm, fuse type: Type F (miniature), mounting type: NS 35/7,5, NS 35/15, color: black
Tekniset tiedot
Product properties
Product type Fuse terminal block
Number of connections 2
Number of rows 1
Potentials 1
Insulation characteristics
Overvoltage category III
Degree of pollution 3
Electrical properties
Fuse type Flat
Rated surge voltage 6 kV
Maximum power dissipation for nominal condition 1.02 W
Fuse Type F (miniature)
Maximum current with single arrangement 15 A
Dimensions
Width 6.2 mm
End cover width 2.2 mm
Height 56 mm
Depth 35.3 mm
Depth on NS 35/7,5 36.5 mm
Depth on NS 35/15 44 mm
Material specifications
Color black
Flammability rating according to UL 94 V0
Insulating material group I
Insulating material PA
Static insulating material application in cold -60 °C
Relative insulation material temperature index (Elec., UL 746 B) 130 °C
Fire protection for rail vehicles (DIN EN 45545-2) R22 HL 1 – HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R23 HL 1 – HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R24 HL 1 – HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R26 HL 1 – HL 3
Surface flammability NFPA 130 (ASTM E 162) passed
Specific optical density of smoke NFPA 130 (ASTM E 662) passed
Smoke gas toxicity NFPA 130 (SMP 800C) passed
Muut tiedot
Tuotenumero 3208943
Pakkausyksikkö 50 Kappaletta
Tuoteavain BE2236
Tuotekoodi BE2236
GTIN 4046356498777
Paino kappaletta kohti (sis. pakkauksen) 8,311 g
Paino kappaletta kohti (ilman pakkausta) 7,744 g
Tullitariffinumero 85369010
Alkuperämaa PL
| Väri | musta |
|---|
