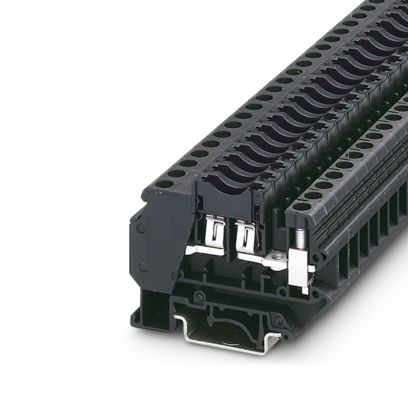

Fuse modular terminal block
Fuse modular terminal block, fuse type: Flat, fuse type: C, nom. voltage: 250 V, nominal current: 30 A, number of positions: 1, connection method: Screw connection, 1 level, Rated cross section: 4 mm2, cross section: 0.2 mm2- 10 mm2, mounting type: NS 35/7,5, NS 35/15, NS 32, color: black
Tekniset tiedot
Notes
General
Note The current is determined by the fuse used, the voltage by the fuse or selected light indicator.
Product properties
Product type Fuse terminal block
Number of positions 1
Number of connections 2
Number of rows 1
Potentials 1
Insulation characteristics
Overvoltage category III
Degree of pollution 3
Electrical properties
Fuse type Flat
Rated surge voltage 4 kV
Maximum power dissipation for nominal condition 1.31 W
Fuse C
Maximum current with single arrangement 30 A (special arrangements on request)
Dimensions
Width 8.2 mm
Height 64 mm
Depth 52.6 mm
Depth on NS 32 58.8 mm
Depth on NS 35/7,5 53.8 mm
Depth on NS 35/15 61.3 mm
Material specifications
Color black
Flammability rating according to UL 94 V0
Insulating material group I
Insulating material PA
Static insulating material application in cold -60 °C
Relative insulation material temperature index (Elec., UL 746 B) 130 °C
Fire protection for rail vehicles (DIN EN 45545-2) R22 HL 1 – HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R23 HL 1 – HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R24 HL 1 – HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R26 HL 1 – HL 3
Surface flammability NFPA 130 (ASTM E 162) passed
Specific optical density of smoke NFPA 130 (ASTM E 662) passed
Smoke gas toxicity NFPA 130 (SMP 800C) passed
Muut tiedot
Tuotenumero 3118203
Pakkausyksikkö 50 Kappaletta
Tuoteavain BE1236
Tuotekoodi BE1236
GTIN 4017918100605
Paino kappaletta kohti (sis. pakkauksen) 20,79 g
Paino kappaletta kohti (ilman pakkausta) 19,5 g
Tullitariffinumero 85369095
Alkuperämaa TR
| Väri | musta |
|---|
