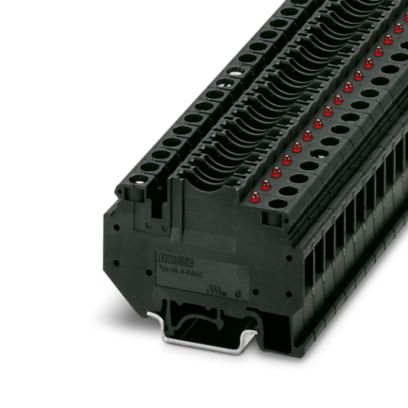

Fuse modular terminal block

Tekniset tiedot

Product properties

Product type Fuse terminal block
Number of positions 1
Number of connections 2
Number of rows 1
Potentials 1

Insulation characteristics
Overvoltage category III
Degree of pollution 3

Electrical properties

Fuse type Flat
Rated surge voltage 4 kV
Maximum power dissipation for nominal condition 1.31 W
Fuse C
Voltage LED LED red
Current LED 2 mA (LED red)
Maximum current with single arrangement 30 A (special arrangements on request)

Dimensions

Width 8.2 mm
Height 64 mm
Depth on NS 32 57 mm
Depth on NS 35/7,5 52 mm
Depth on NS 35/15 59.5 mm

Material specifications

Color black
Flammability rating according to UL 94 V0
Insulating material group I
Insulating material PA
Static insulating material application in cold -60 °C
Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21)) 130 °C
Relative insulation material temperature index (Elec., UL 746 B) 130 °C
Fire protection for rail vehicles (DIN EN 45545-2) R22 HL 1 – HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R23 HL 1 – HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R24 HL 1 – HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R26 HL 1 – HL 3
Calorimetric heat release NFPA 130 (ASTM E 1354) 28 MJ/kg
Surface flammability NFPA 130 (ASTM E 162) passed
Specific optical density of smoke NFPA 130 (ASTM E 662) passed
Smoke gas toxicity NFPA 130 (SMP 800C) passed

Muut tiedot

Tuotenumero 3001938
Pakkausyksikkö 50 Kappaletta
Tuoteavain BE1236
Tuotekoodi BE1236
GTIN 4017918100971
Paino kappaletta kohti (sis. pakkauksen) 21,232 g
Paino kappaletta kohti (ilman pakkausta) 21,12 g
Tullitariffinumero 85369095
Alkuperämaa TR
