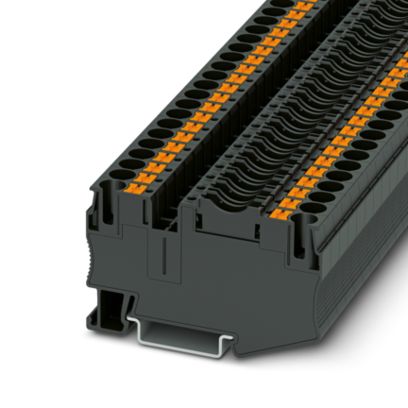

Fuse modular terminal block

Tekniset tiedot

Notes

General The current is determined by the fuse used, the voltage by the selected LED display. Permissible continuous load in accordance with ISO 8820-2:2015 (E) is max. 70% of the nominal current of the fuse.
For short-circuit protection use only.

Product properties

Product type Fuse terminal block
Number of connections 2
Number of rows 1
Potentials 1

Insulation characteristics
Overvoltage category III
Degree of pollution 3

Electrical properties

Fuse type Flat
Rated surge voltage 6 kV
Maximum power dissipation for nominal condition 1.31 W
Fuse Type C / max. 2.2 W

Dimensions

Width 8.2 mm
Height 74.1 mm
Depth 44 mm
Depth on NS 35/7,5 45.5 mm
Depth on NS 35/15 53 mm

Material specifications

Color black
Flammability rating according to UL 94 V0
Insulating material group I
Insulating material PA
Static insulating material application in cold -60 °C
Relative insulation material temperature index (Elec., UL 746 B) 130 °C
Fire protection for rail vehicles (DIN EN 45545-2) R22 HL 1 – HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R23 HL 1 – HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R24 HL 1 – HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R26 HL 1 – HL 3
Surface flammability NFPA 130 (ASTM E 162) passed
Specific optical density of smoke NFPA 130 (ASTM E 662) passed
Smoke gas toxicity NFPA 130 (SMP 800C) passed

Muut tiedot

Tuotenumero 3212166
Pakkausyksikkö 50 Kappaletta
Tuoteavain BE2236
Tuotekoodi BE2236
GTIN 4055626394312
Paino kappaletta kohti (sis. pakkauksen) 18,918 g
Paino kappaletta kohti (ilman pakkausta) 17,292 g
Tullitariffinumero 85369095
Alkuperämaa CN
