Tekniset tiedot
Product properties

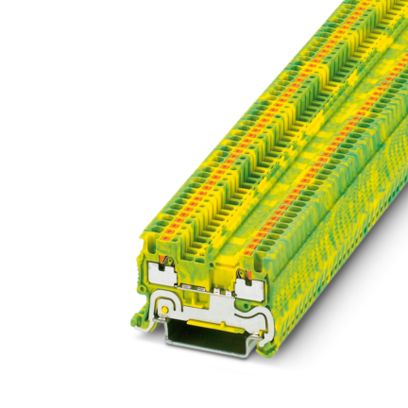

Product type Ground terminal block
Area of application Railway industry
Machine building
Plant engineering
Number of connections 2
Number of rows 1
Insulation characteristics
Overvoltage category III
Degree of pollution 3
Electrical properties
Rated surge voltage 6 kV
Maximum power dissipation for nominal condition 0.56 W
Connection data
Grounding foot Yes
Number of connections per level 2
Nominal cross section 1.5 mm²
1 level
Note Please observe the current carrying capacity of the DIN rails.
Stripping length 8 mm … 10 mm
Internal cylindrical gage A1 / B1
Connection in acc. with standard IEC 60947-7-2
Conductor cross section rigid 0.14 mm² … 1.5 mm²
Cross section AWG 26 … 16 (converted acc. to IEC)
Conductor cross section flexible 0.14 mm² … 1.5 mm²
Conductor cross section, flexible [AWG] 26 … 16 (converted acc. to IEC)
Conductor cross-section flexible (ferrule without plastic sleeve) 0.14 mm² … 1.5 mm²
Flexible conductor cross section (ferrule with plastic sleeve) 0.14 mm² … 1 mm² Using the AI-S 1-8 TQ ferrule, Item No. 1200293, is recommended
1 level Connection cross sections directly pluggable
Conductor cross section rigid 0.25 mm² … 1.5 mm²
Conductor cross-section flexible (ferrule without plastic sleeve) 0.34 mm² … 1.5 mm²
Flexible conductor cross section (ferrule with plastic sleeve) 0.34 mm² … 1 mm²
Dimensions
Width 3.5 mm
End cover width 2.2 mm
Height 45 mm
Depth 30.5 mm
Depth on NS 35/7,5 32 mm
Depth on NS 35/15 39.5 mm
Material specifications
Color green-yellow
Flammability rating according to UL 94 V0
Insulating material group I
Insulating material PA
Static insulating material application in cold -60 °C
Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21)) 125 °C
Relative insulation material temperature index (Elec., UL 746 B) 130 °C
Fire protection for rail vehicles (DIN EN 45545-2) R22 HL 1 – HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R23 HL 1 – HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R24 HL 1 – HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R26 HL 1 – HL 3
Calorimetric heat release NFPA 130 (ASTM E 1354) 27,5 MJ/kg
Surface flammability NFPA 130 (ASTM E 162) passed
Specific optical density of smoke NFPA 130 (ASTM E 662) passed
Smoke gas toxicity NFPA 130 (SMP 800C) passed
Mechanical properties
Mechanical data
Open side panel Yes
Standards and regulations
Connection in acc. with standard IEC 60947-7-2
Mounting
Mounting type NS 35/7,5
NS 35/15
Muut tiedot
Tuotenumero 3208139
Pakkausyksikkö 50 Kappaletta
Tuoteavain BE2221
Tuotekoodi BE2221
GTIN 4046356564434
Paino kappaletta kohti (sis. pakkauksen) 5,409 g
Paino kappaletta kohti (ilman pakkausta) 5,409 g
Tullitariffinumero 85369010
Alkuperämaa DE
| Väri | kelta/vihreä |
|---|
