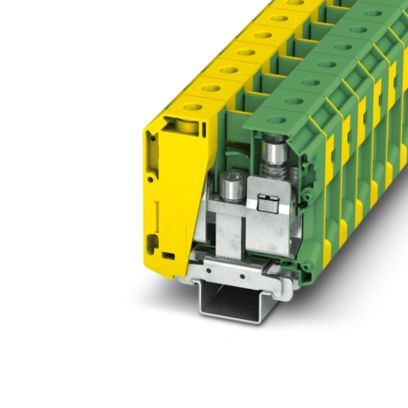

Ground modular terminal block
Ground terminal, number of connections: 2, number of positions: 1, connection method: Screw connection, Rated cross section: 70 mm2, cross section: 16 mm2 – 95 mm2, mounting: PE foot with mounting screw, M6, mounting type: NS 35/7,5, NS 35/15, NS 35/15-2,3, NS 32, color: green-yellow
Tekniset tiedot
Product properties
Product type Ground terminal block
Number of positions 1
Number of connections 2
Number of rows 1
Insulation characteristics
Overvoltage category III
Degree of pollution 3
Electrical properties
Rated surge voltage 8 kV
Maximum power dissipation for nominal condition 6.27 W
Dimensions
Width 20.3 mm
Height 70.5 mm
Depth on NS 35/15 87.5 mm
Material specifications
Color green-yellow
Flammability rating according to UL 94 V0
Insulating material group I
Insulating material PA
Static insulating material application in cold -60 °C
Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21)) 130 °C
Relative insulation material temperature index (Elec., UL 746 B) 130 °C
Fire protection for rail vehicles (DIN EN 45545-2) R22 HL 1 – HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R23 HL 1 – HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R24 HL 1 – HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R26 HL 1 – HL 3
Calorimetric heat release NFPA 130 (ASTM E 1354) 28 MJ/kg
Surface flammability NFPA 130 (ASTM E 162) passed
Specific optical density of smoke NFPA 130 (ASTM E 662) passed
Smoke gas toxicity NFPA 130 (SMP 800C) passed
Muut tiedot
Tuotenumero 3213141
Pakkausyksikkö 10 Kappaletta
Tuoteavain BE1321
Tuotekoodi BE1321
GTIN 4046356783446
Paino kappaletta kohti (sis. pakkauksen) 204,82 g
Paino kappaletta kohti (ilman pakkausta) 204,82 g
Tullitariffinumero 85369010
Alkuperämaa CN
| Väri | kelta/vihreä |
|---|
