Tekniset tiedot
Notes
General for contact inserts HC-B24, BB46, D64, DD108, HV10/16, M

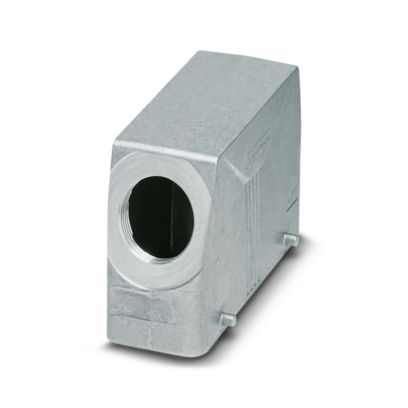

General also available as a powder-coated or color version: 1373194 HC-STA-B24-HHFD-1STM32-EL/…
Product properties
Type B24
Product type Housing with locking latch
Application Standard
No. of cable outlets 1
Type of the screw connection 1x M32
Housing type Sleeve housing
Cable outlet lateral
Pg screw connection none
Dimensions
Width 44 mm
Height 76 mm
Length 120 mm
Material specifications
Housing surface material uncoated
Impact strength IK09
Housing material Die-cast aluminum, salt water resistant
Mechanical properties
Mechanical data
Type of the screw connection 1x M32
Locking type Pin
Environmental and real-life conditions
Ambient conditions
Degree of protection IP66
IP67
Enclosure rating (NEMA) 4 (UL 50e)
4X (UL 50e)
12 (UL 50e)
Impact strength IK09
Ambient temperature (operation) -40 °C … 125 °C
Muut tiedot
Tuotenumero 1412750
Pakkausyksikkö 1 Kappaletta
Tuoteavain BF7APB
Tuotekoodi BF7APB
GTIN 4055626060156
Paino kappaletta kohti (sis. pakkauksen) 278,5 g
Paino kappaletta kohti (ilman pakkausta) 276,8 g
Tullitariffinumero 85389099
Alkuperämaa PL
