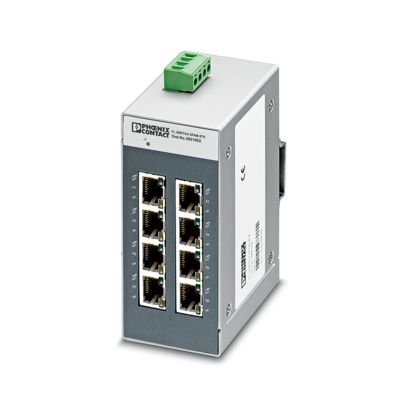

Tekniset tiedot
Dimensions
Width 50 mm
Height 110 mm
Depth 70 mm
Material specifications
Housing material Aluminum
Mounting
Mounting type DIN rail mounting
Interfaces
Ethernet (RJ45)
Connection method RJ45
Note on the connection method Auto negotiation and autocrossing
Transmission speed 10/100 Mbps
Transmission physics Ethernet in RJ45 twisted pair
Transmission length 100 m (per segment)
Signal LEDs Data receive, link status
No. of channels 8 (RJ45 ports)
Product properties
Type Block design
Product type Switch
Product family Unmanaged Switch SFNB
MTTF 95.6 Years (MIL-HDBK-217F standard, temperature 25°C, operating cycle 100%)
Switch functions
Basic functions Unmanaged switch / auto negotiation, complies with IEEE 802.3, store and forward switching mode
MAC address table 2k
Status and diagnostic indicators LEDs: US, link and activity per port
Additional functions Autonegotiation
Security functions
Basic functions Unmanaged switch / auto negotiation, complies with IEEE 802.3, store and forward switching mode
Electrical properties
Local diagnostics US Supply voltage Green LED
LNK/ACT Link status/data transmission Green LED
100 Data transmission speed Yellow LED
Maximum power dissipation for nominal condition 3.36 W
Transmission medium Copper
Supply
Supply voltage (DC) 24 V DC
Supply voltage range 9 V DC … 32 V DC
Power supply connection Via COMBICON, max. conductor cross section 2.5 mm²
Residual ripple 3.6 VPP (within the permitted voltage range)
Max. current consumption 380 mA (@9 V DC)
Typical current consumption 140 mA (at US = 24 V DC)
Connection data
Connection method Screw connection
Conductor cross section, rigid 0.2 mm² … 2.5 mm²
Conductor cross section, flexible 0.2 mm² … 2.5 mm²
Conductor cross section AWG 30 … 12
Stripping length 7 mm
Environmental and real-life conditions
Ambient conditions
Degree of protection IP20
Ambient temperature (operation) -10 °C … 60 °C
Ambient temperature (storage/transport) -20 °C … 85 °C
Permissible humidity (operation) 5 % … 95 % (non-condensing)
Permissible humidity (storage/transport) 5 % … 95 % (non-condensing)
Air pressure (operation) 86 kPa … 108 kPa (up to 1500 m above sea level)
Approvals
Conformity/Approvals
UL, USA / Canada Class I, Div. 2, Groups A, B, C, D
EMC data
Noise immunity EN 61000-6-2:2005
Electromagnetic compatibility Conformance with EMC Directive 2004/108/EC
Noise emission EN 61000-6-4
System properties
Functionality
Basic functions Unmanaged switch / auto negotiation, complies with IEEE 802.3, store and forward switching mode
Signaling
Status display LEDs: US, link and activity per port
Muut tiedot
Tuotenumero 2891002
Pakkausyksikkö 1 Kappaletta
Tuoteavain DNN113
Tuotekoodi DNN113
GTIN 4046356457170
Paino kappaletta kohti (sis. pakkauksen) 403,2 g
Paino kappaletta kohti (ilman pakkausta) 307,3 g
Tullitariffinumero 85176200
Alkuperämaa TW
