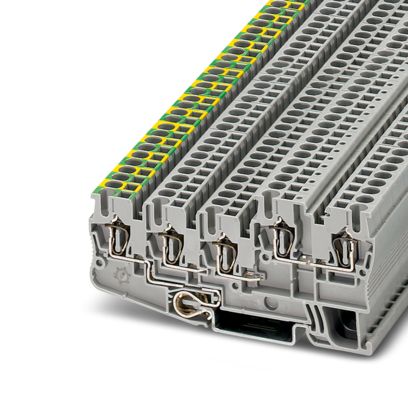

Installation ground terminal block
Installation ground terminal block, nom. voltage: 250 V, nominal current: 18 A, number of connections: 5, connection method: Spring-cage connection, Rated cross section: 2.5 mm2, cross section: 0.08 mm2 – 4 mm2, mounting type: NS 35/7,5, NS 35/15, color: gray
Tekniset tiedot
Product properties
Product type Sensor/actuator terminal block
Number of connections 5
Number of rows 3
Insulation characteristics
Overvoltage category III
Degree of pollution 3
Electrical properties
Rated surge voltage 4 kV
Maximum power dissipation for nominal condition 0.77 W
Dimensions
Width 5.2 mm
End cover width 2.2 mm
Height 92.3 mm
Depth on NS 35/7,5 44.5 mm
Depth on NS 35/15 52 mm
Material specifications
Color gray
Flammability rating according to UL 94 V0
Insulating material group I
Insulating material PA
Static insulating material application in cold -60 °C
Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21)) 130 °C
Relative insulation material temperature index (Elec., UL 746 B) 130 °C
Fire protection for rail vehicles (DIN EN 45545-2) R22 HL 1 – HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R23 HL 1 – HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R24 HL 1 – HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R26 HL 1 – HL 3
Calorimetric heat release NFPA 130 (ASTM E 1354) 28 MJ/kg
Surface flammability NFPA 130 (ASTM E 162) passed
Specific optical density of smoke NFPA 130 (ASTM E 662) passed
Smoke gas toxicity NFPA 130 (SMP 800C) passed
Muut tiedot
Tuotenumero 3209060
Pakkausyksikkö 50 Kappaletta
Tuoteavain BE2118
Tuotekoodi BE2118
GTIN 4046356143318
Paino kappaletta kohti (sis. pakkauksen) 13,959 g
Paino kappaletta kohti (ilman pakkausta) 13,959 g
Tullitariffinumero 85369010
Alkuperämaa TR
| Väri | harmaa |
|---|
