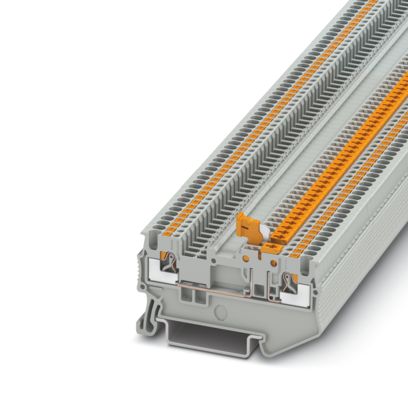

Knife disconnect terminal block

Product properties

Product type Disconnect terminal block
Product family PT
Number of connections 2
Number of rows 1
Potentials 1

Insulation characteristics
Overvoltage category III
Degree of pollution 3

Electrical properties

Maximum power dissipation for nominal condition 0.56 W

Connection data

Number of connections per level 2
Nominal cross section 1.5 mm²

1 level
Stripping length 8 mm … 10 mm
Internal cylindrical gage A1 / B1
Connection in acc. with standard IEC 60947-7-1
Conductor cross section rigid 0.14 mm² … 1.5 mm²
Cross section AWG 26 … 16 (converted acc. to IEC)
Conductor cross section flexible 0.14 mm² … 1.5 mm²
Conductor cross section, flexible [AWG] 26 … 16 (converted acc. to IEC)
Conductor cross-section flexible (ferrule without plastic sleeve) 0.14 mm² … 1.5 mm²
Flexible conductor cross section (ferrule with plastic sleeve) 0.14 mm² … 1 mm² Using the AI-S 1-8 TQ ferrule, Item No. 1200293, is recommended
Nominal current 10 A
Maximum load current 10 A
Nominal voltage 400 V
Nominal cross section 1.5 mm²

1 level Connection cross sections directly pluggable
Conductor cross section rigid 0.25 mm² … 1.5 mm²
Conductor cross-section flexible (ferrule without plastic sleeve) 0.34 mm² … 1.5 mm²
Flexible conductor cross section (ferrule with plastic sleeve) 0.34 mm² … 1 mm²

Dimensions

Width 3.5 mm
End cover width 0.8 mm
Height 58.9 mm
Depth 30.5 mm
Depth on NS 35/7,5 32 mm
Depth on NS 35/15 39.5 mm

Material specifications

Color gray
Flammability rating according to UL 94 V0
Insulating material group I
Insulating material PA
Static insulating material application in cold -60 °C
Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21)) 125 °C
Relative insulation material temperature index (Elec., UL 746 B) 130 °C
Fire protection for rail vehicles (DIN EN 45545-2) R22 HL 1 – HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R23 HL 1 – HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R24 HL 1 – HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R26 HL 1 – HL 3
Calorimetric heat release NFPA 130 (ASTM E 1354) 27,5 MJ/kg
Surface flammability NFPA 130 (ASTM E 162) passed
Specific optical density of smoke NFPA 130 (ASTM E 662) passed
Smoke gas toxicity NFPA 130 (SMP 800C) passed

Mechanical properties

Mechanical data
Open side panel Yes

Standards and regulations

Connection in acc. with standard IEC 60947-7-1

Mounting

Mounting type NS 35/7,5
NS 35/15

Muut tiedot

Tuotenumero 3210301
Pakkausyksikkö 50 Kappaletta
Tuoteavain BE2231
Tuotekoodi BE2231
GTIN 4046356861205
Paino kappaletta kohti (sis. pakkauksen) 4,68 g
Paino kappaletta kohti (ilman pakkausta) 4,68 g
Tullitariffinumero 85369010
Alkuperämaa PL
