Kontaktori 160 kW/400V/AC-3 110-250V AC/DC 2s+2av

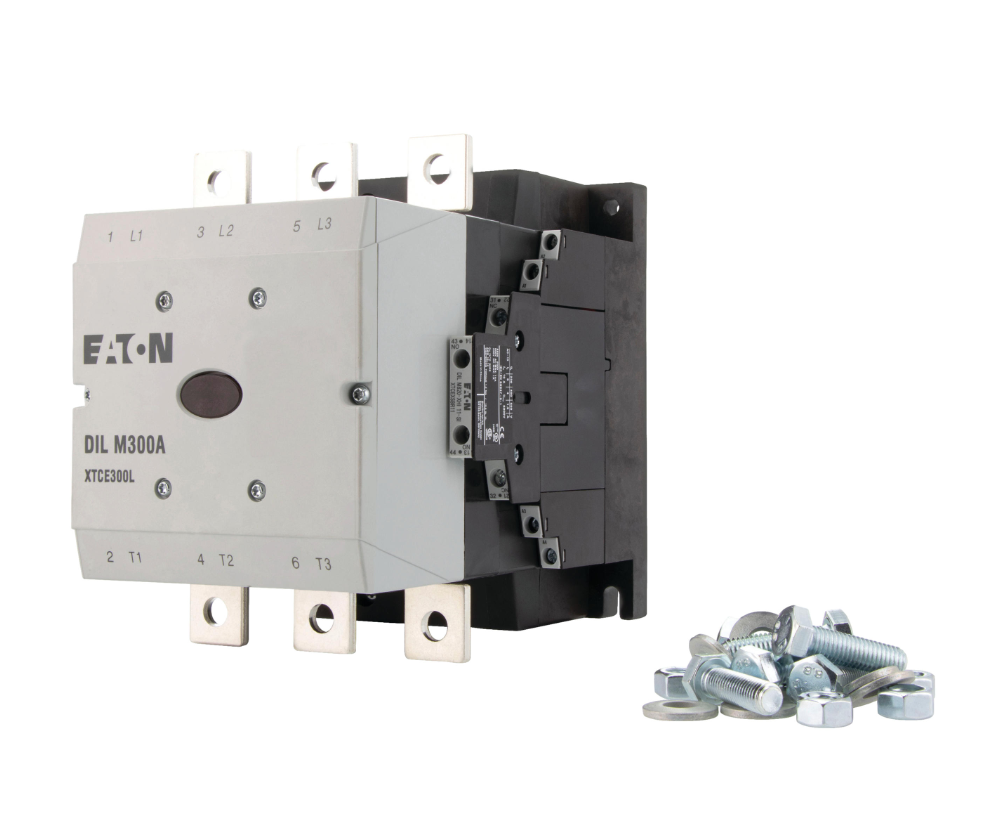

Eaton Moeller® series DILM Contactor, 380 V 400 V 160 kW, 2 N/O, 2 NC, RA 250: 110 – 250 V 40 – 60 Hz/110 – 350 V DC, AC and DC operation, Screw connection
GENERAL SPECIFICATIONS
PRODUCT NAME
Eaton Moeller® series DILM Contactor
CATALOG NUMBER
139556
MODEL CODE
DILM300A/22(RA250)
EAN
4015081363346
PRODUCT LENGTH/DEPTH
208 mm
PRODUCT HEIGHT
189 mm
PRODUCT WIDTH
140 mm
PRODUCT WEIGHT
7.1 kg
CERTIFICATIONS
VDE 0660
UL File No.: E29096
UL Category Control No.: NLDX
UL 60947-4-1
IEC/EN 60947-4-1
CSA Class No.: 3211-04
UL/CSA
CSA File No. 1017510
North America (UL listed, CSA certified)
EN 45545: Fire protection on railway vehicles
IEC 61373: Vibration and shock, tested for category 1 class B
CE marking
CATALOG NOTES
Contacts according to EN 50012
EN 45545 – Fire protection on railway vehicles: Fire protection class of all plastics according to UL94: V-0 / plastic weight in total: 1.872 kg
