Tekniset tiedot
Product properties

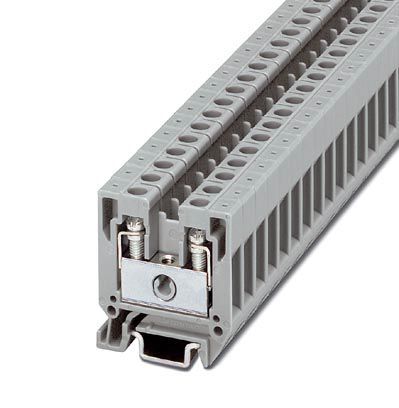

Product type Miniature terminal block
Number of connections 2
Number of rows 1
Insulation characteristics
Overvoltage category III
Degree of pollution 3
Electrical properties properties
Rated surge voltage 6 kV
Maximum power dissipation for nominal condition 0 W
Connection data
Number of connections per level 2
1 level
Screw thread M3
Tightening torque 0.6 … 0.8 Nm
Stripping length 8 mm
Internal cylindrical gage A4
Connection in acc. with standard IEC 60947-7-1
Conductor cross section rigid 0.2 mm² … 4 mm²
Cross section AWG 24 … 12 (converted acc. to IEC)
Conductor cross section flexible 0.2 mm² … 4 mm²
Conductor cross section, flexible [AWG] 24 … 12 (converted acc. to IEC)
Conductor cross-section flexible (ferrule without plastic sleeve) 0.25 mm² … 4 mm²
Flexible conductor cross section (ferrule with plastic sleeve) 0.25 mm² … 2.5 mm²
2 conductors with same cross section, solid 0.2 mm² … 1.5 mm²
2 conductors with same cross section, flexible 0.2 mm² … 1.5 mm²
2 conductors with same cross section, flexible, with ferrule without plastic sleeve 0.25 mm² … 1.5 mm²
2 conductors with the same cross section, flexible, with TWIN ferrule with plastic sleeve 0.5 mm² … 2.5 mm²
Nominal current 32 A
Maximum load current 32 A (with 4 mm² conductor cross section)
Nominal voltage 500 V
Dimension
Width 6.2 mm
End cover width 1 mm
Material specifications
Color gray
Flammability rating according to UL 94 V0
Insulating material group I
Insulating material PA
Static insulating material application in cold -60 °C
Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21)) 125 °C
Relative insulation material temperature index (Elec., UL 746 B) 130 °C
Fire protection for rail vehicles (DIN EN 45545-2) R22 HL 1 – HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R23 HL 1 – HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R24 HL 1 – HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R26 HL 1 – HL 3
Calorimetric heat release NFPA 130 (ASTM E 1354) 27,5 MJ/kg
Surface flammability NFPA 130 (ASTM E 162) passed
Specific optical density of smoke NFPA 130 (ASTM E 662) passed
Smoke gas toxicity NFPA 130 (SMP 800C) passed
Electrical tests
Surge voltage test
Test voltage setpoint 7.3 kV
Result Test passed
Temperature-rise test
Requirement temperature-rise test Increase in temperature ≤ 45 K
Result Test passed
Short-time withstand current 4 mm² 0.48 kA
Result Test passed
Power-frequency withstand voltage
Test voltage setpoint 1.89 kV
Result Test passed
Mechanical properties
Mechanical data
Open side panel Yes
Mechanical tests
Mechanical strength
Result Test passed
Attachment on the carrier
DIN rail/fixing support NS 15
Test force setpoint 1 N
Result Test passed
Test for conductor damage and slackening
Rotation speed 10 rpm
Revolutions 135
Conductor cross section/weight 0.2 mm² / 0.2 kg
4 mm² / 0.9 kg
Result Test passed
Environmental and real-life conditions
Needle-flame test
Time of exposure 30 s
Result Test passed
Ambient conditions
Ambient temperature (storage/transport) -25 °C … 60 °C (for a short time, not exceeding 24 h, -60 °C to +70 °C)
Ambient temperature (assembly) -5 °C … 70 °C
Ambient temperature (actuation) -5 °C … 70 °C
Permissible humidity (storage/transport) 30 % … 70 %
Standards and regulations
Connection in acc. with standard IEC 60947-7-1
Mounting
Mounting type NS 15
Muut tiedot
Tuotenumero 1415076
Pakkausyksikkö 50 Kappaletta
Tuoteavain BE1261
Tuotekoodi BE1261
GTIN 4017918021368
Paino kappaletta kohti (sis. pakkauksen) 7,78 g
Paino kappaletta kohti (ilman pakkausta) 7,42 g
Tullitariffinumero 85369010
Alkuperämaa DE
| Väri | harmaa |
|---|
