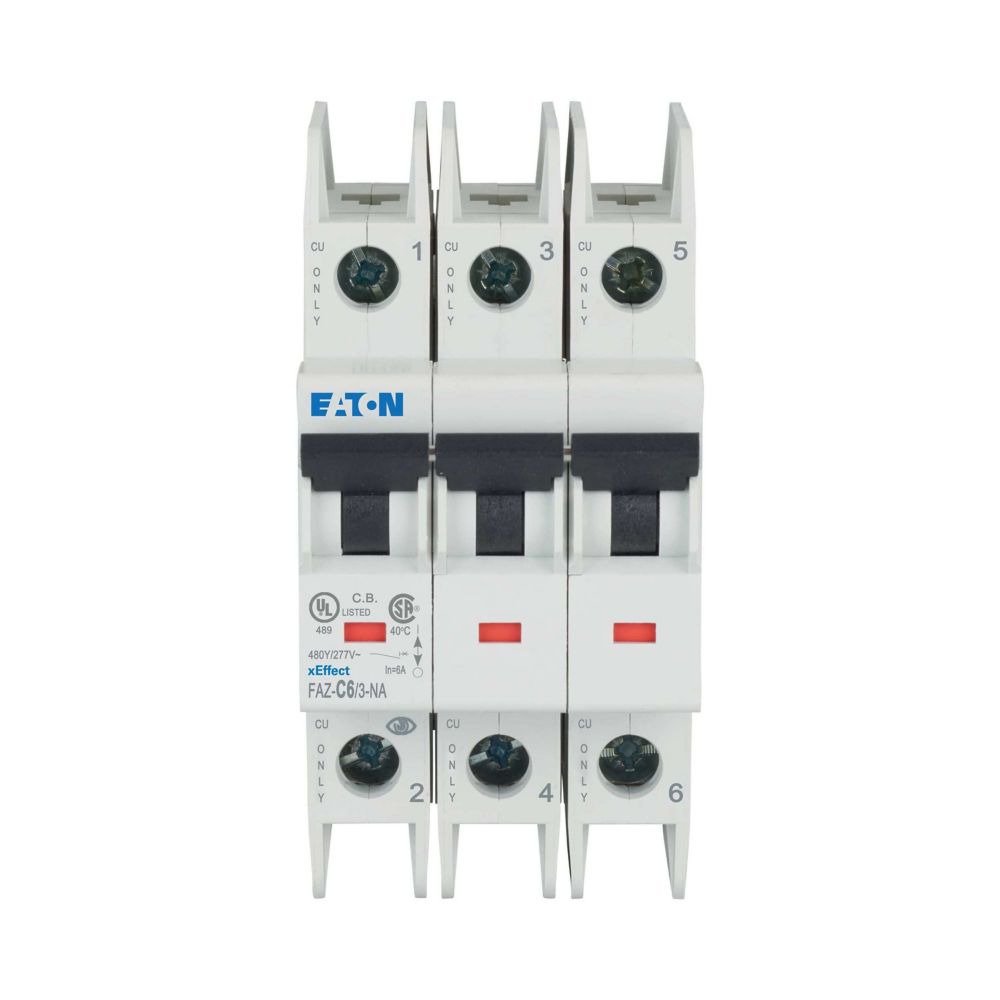

Miniature circuit breaker (MCB), 6 A, 3p, characte
Eaton Moeller series xEffect – FAZ-NA, FAZ-RT MCB. FAZ-NA, 3-pole, tripping characteristic: C, rated current In: 6 A, Switchgear for export to North America (UL-listed)
GENERAL SPECIFICATIONS
PRODUCT NAME
Eaton Moeller series xEffect – FAZ-NA, FAZ-RT MCB
CATALOG NUMBER
102244
EAN
4015081021208
PRODUCT LENGTH/DEPTH
105 mm
PRODUCT HEIGHT
75.5 mm
PRODUCT WIDTH
53.1 mm
PRODUCT WEIGHT
0.361 kg
COMPLIANCES
RoHS conform
CERTIFICATIONS
UL 489
CSA Std. C22.2 No. 235
CE marking
IEC/EN 60947-2
IEC 60947-2
UL 489, CSA C22.2 No. 5
North America (UL listed, CSA certified)
UL (Category Control Number DIVQ)
Specially designed for North America, suitable as BCPD
CSA-C22.2 No. 5-09
CSA (Class No. 1432-01)
CSA (File No. 204453)
UL (File No. E235139)
EN45545-2
IEC 61373
CATALOG NOTES
Positioned for medium inrush startup currents to provide protection for small transformers and pilot devices.
