Tekniset tiedot
Product properties

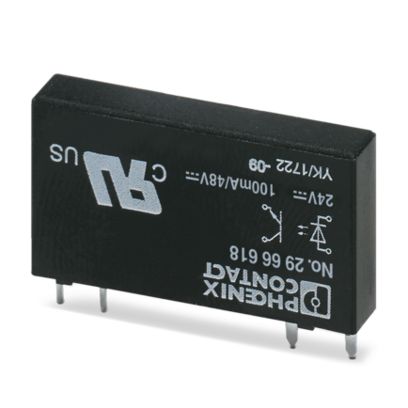

Product type Single solid-state relay
Operating mode 100% operating factor
Insulation characteristics
Insulation Basic insulation
Insulation characteristics: Standards/regulations
Insulation Basic insulation
Overvoltage category III
Pollution degree 2
Electrical properties
Maximum power dissipation for nominal condition 0.17 W
Test voltage (Input/output) 2.5 kV (50 Hz, 1 min., input/output)
Input data
Nominal input voltage UN 24 V DC
Input voltage range in reference to UN 0.8 … 1.2
Input voltage range 19.2 V DC … 28.8 V DC
Switching threshold ”0” signal, voltage ≤ 10 V
Switching threshold ”1” signal voltage ≥ 16 V
Typical input current at UN 7 mA
Typical response time 20 µs (at UN)
Typical turn-off time 300 µs (at UN)
Transmission frequency 300 Hz
Output data
Contact switching type 1 N/O contact
Design of digital output electronic
Output voltage range 3 V DC … 48 V DC
Limiting continuous current 100 mA
Voltage drop at max. limiting continuous current ≤ 1 V
Output circuit 2-conductor, floating
Protective circuit Reverse polarity protection
Surge protection
Dimensions
Width 5 mm
Height 28 mm
Depth 15 mm
Material specifications
Color black (RAL 9005)
Environmental and real-life conditions
Ambient conditions
Degree of protection RT III
Ambient temperature (operation) -25 °C … 60 °C
Ambient temperature (storage/transport) -25 °C … 70 °C
Approvals
Corrosive gas test
Identification ISA-S71.04. G3 Harsh Group
EN 60068-2-60
Standards and regulations
Standards/regulations IEC 60664
EN 50178
Mounting
Assembly instructions in rows with zero spacing
Mounting position any
Muut tiedot
Tuotenumero 2966618
Pakkausyksikkö 10 Kappaletta
Tuoteavain CK61F2
Tuotekoodi CK61F2
GTIN 4017918130466
Paino kappaletta kohti (sis. pakkauksen) 4,83 g
Paino kappaletta kohti (ilman pakkausta) 4,83 g
Tullitariffinumero 85364110
Alkuperämaa HU
