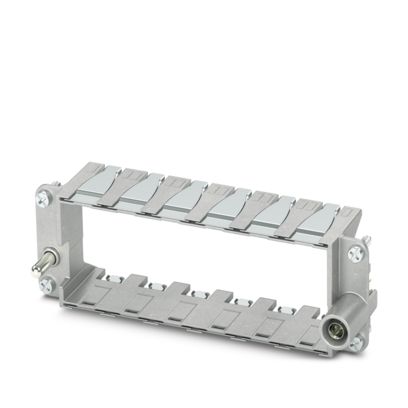

Module carrier frame

Tekniset tiedot

Notes

General This product replaces 1417402 HC-M-B24-MF-B

Product properties

Type B24
B48
Product type Module carrier frame
Application Module carrier frame
Number of module slots 6
Type for the panel mounting side (a, b, c, …)
Series HC-M-B
HC-M-02
HC-M-03
HC-M-03/04
HC-M-04
HC-M-05
HC-M-06
HC-M-08
HC-M-08-GBIT
HC-M-12
HC-M-17
HC-M-20
HC-M-25
HC-M-DSUB
HC-M-EMV
HC-M-HV
HC-M-HS
HC-M-00
Frame type Module carrier frame

Connection data

Conductor connection
Conductor cross section 4 mm² … 6 mm² (for PE conductor – power side)
1 mm² … 2.5 mm² (for PE conductor – control side)
Connection cross section AWG 12 … 10 (for PE conductor – power side)
18 … 14 (for PE conductor – control side)
Tightening torque 0.5 Nm … 0.8 Nm (Mounting screws for mounting in the HEAVYCON housing)

Dimension

Width 34.9 mm
Height 36 mm
Length 111 mm

Material specifications

Contact carrier material Die-cast zinc alloy

Mechanical properties

Mechanical data
Insertion/withdrawal cycles ≥ 500

Environmental and real-life conditions

Ambient conditions
Ambient temperature (operation) -40 °C … 125 °C

Mounting

Assembly instructions HC-MHR-PE16 ( 1636981) for PE connection extension to 16 mm².
Use wire end protection for PE wires (PE connection screws without wire protection) for housings without lateral connectors, max. thread length of the screw connection 12 mm
When using the module carrier frame in metal housings, the connection of the PE conductor must be ensured via the PE connection provided on the module carrier frame or via a special metal PE module

Muut tiedot

Tuotenumero 1182094
Pakkausyksikkö 1 Kappaletta
Tuoteavain BF7ACD
Tuotekoodi BF7ACD
GTIN 4063151217167
Paino kappaletta kohti (sis. pakkauksen) 91,4 g
Paino kappaletta kohti (ilman pakkausta) 90,3 g
Tullitariffinumero 85389099
Alkuperämaa CN
