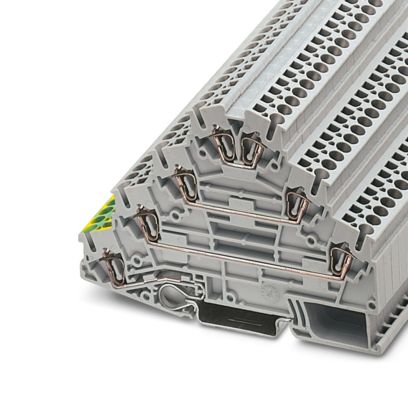

Motor terminal
Motor terminal block, four-level, with PE foot, connection method: spring-cage connection, cross section: 0.08 mm² – 4 mm², AWG: 28 – 12, width: 5.2 mm, color: gray, mounting type: NS 35/7,5, NS 35/15
Tekniset tiedot
Product properties
Product type Motor terminal block
Number of connections 7
Number of rows 4
Potentials 4
Insulation characteristics
Overvoltage category III
Degree of pollution 3
Electrical properties
Rated surge voltage 8 kV
Maximum power dissipation for nominal condition 0.77 W
Dimensions
Width 5.2 mm
End cover width 2.2 mm
Height 98.5 mm
Depth on NS 35/7,5 73.5 mm
Depth on NS 35/15 81 mm
Material specifications
Color gray
Flammability rating according to UL 94 V0
Insulating material group I
Insulating material PA
Static insulating material application in cold -60 °C
Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21)) 130 °C
Relative insulation material temperature index (Elec., UL 746 B) 130 °C
Fire protection for rail vehicles (DIN EN 45545-2) R22 HL 1 – HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R23 HL 1 – HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R24 HL 1 – HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R26 HL 1 – HL 3
Calorimetric heat release NFPA 130 (ASTM E 1354) 28 MJ/kg
Surface flammability NFPA 130 (ASTM E 162) passed
Specific optical density of smoke NFPA 130 (ASTM E 662) passed
Smoke gas toxicity NFPA 130 (SMP 800C) passed
Muut tiedot
Tuotenumero 3036055
Pakkausyksikkö 50 Kappaletta
Tuoteavain BE2125
Tuotekoodi BE2125
GTIN 4017918817978
Paino kappaletta kohti (sis. pakkauksen) 21,9 g
Paino kappaletta kohti (ilman pakkausta) 21,9 g
Tullitariffinumero 85369010
Alkuperämaa PL
| Väri | harmaa |
|---|
