Tekniset tiedot
Product properties

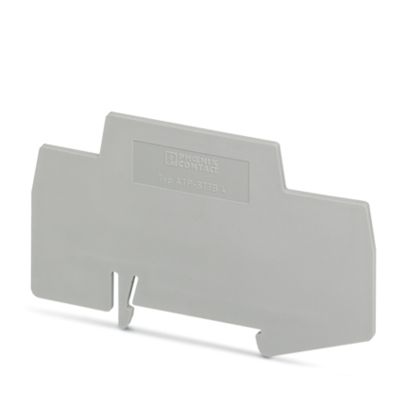

Product type Partition plate
Connection data
Cross section AWG (converted acc. to IEC)
Dimensions
Width 2 mm
Height 88.7 mm
Depth 53 mm
Material specifications
Color gray
Material PA
Flammability rating according to UL 94 V0
Static insulating material application in cold -60 °C
Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21)) 125 °C
Relative insulation material temperature index (Elec., UL 746 B) 130 °C
Fire protection for rail vehicles (DIN EN 45545-2) R22 HL 1 – HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R23 HL 1 – HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R24 HL 1 – HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R26 HL 1 – HL 3
Calorimetric heat release NFPA 130 (ASTM E 1354) 27,5 MJ/kg
Surface flammability NFPA 130 (ASTM E 162) passed
Specific optical density of smoke NFPA 130 (ASTM E 662) passed
Smoke gas toxicity NFPA 130 (SMP 800C) passed
Environmental and real-life conditions
Ambient conditions
Ambient temperature (operation) -60 °C … 105 °C (max. short-term operating temperature RTI Elec.)
Ambient temperature (storage/transport) -25 °C … 60 °C (for a short time, not exceeding 24 h, -60 °C to +70 °C)
Ambient temperature (assembly) -5 °C … 70 °C
Ambient temperature (actuation) -5 °C … 70 °C
Permissible humidity (storage/transport) 30 % … 70 %
Muut tiedot
Tuotenumero 3030747
Pakkausyksikkö 50 Kappaletta
Tuoteavain BE2Z1X
Tuotekoodi BE2Z1X
GTIN 4017918187958
Paino kappaletta kohti (sis. pakkauksen) 7,293 g
Paino kappaletta kohti (ilman pakkausta) 7,293 g
Tullitariffinumero 39269097
Alkuperämaa DE
| Väri | harmaa |
|---|
