Tekniset tiedot
Product properties

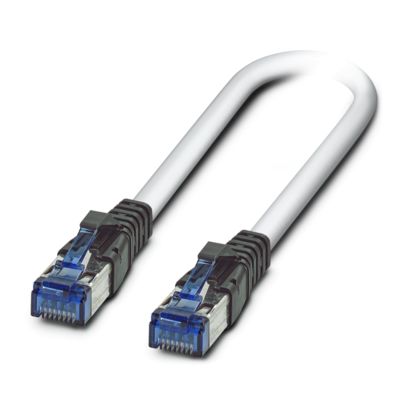

Product type Data cable preassembled
Sensor type Ethernet
Number of positions 8
Connection profile RJ45
Electrical properties
Contact resistance ≤ 0.003 Ω (IEC 60603-7)
Nominal voltage UN 150 Vrms
Nominal current IN 1.5 A
Transmission speed 1 Gbps
Mechanical properties
Mechanical data
Insertion force per signal contact 30.00 N
Extraction force per signal contact 50 N
Material specifications
Flammability rating according to UL 94 V0
Outer sheath, material LSFROH
Dimensions
Width 12.6 mm
Height 6.6 mm
Length 40.05 mm
External dimensions
External diameter max. 6.2 mm
Connector
Connection 1
Type Plug straight RJ45
Shielded yes
Insertion/withdrawal cycles ≥ 750
Degree of protection IP20
Connection 2
Type Plug straight RJ45
Cable/line
Cable length 1.00 m
External cable diameter 5.50 mm
Outer sheath, material LSFROH
Single wire, number of litz wires 8
Single wire, material Cu litz wire
Single wire, cross section 0.14 mm²
Shielding S/FTP
Smallest bending radius, fixed installation 30 mm
Halogen-free according to IEC 60754-1
Concentration of fumes in accordance with IEC 61034
Flame resistance according to IEC 60332-3C
Environmental and real-life conditions
Ambient conditions
Degree of protection IP20
Ambient temperature (operation) -10 °C … 60 °C
Standards and regulations
Flame resistance according to IEC 60332-3C
Concentration of fumes in accordance with IEC 61034
Muut tiedot
Tuotenumero 2891385
Pakkausyksikkö 1 Kappaletta
Tuoteavain ABNABG
Tuotekoodi ABNABG
GTIN 4046356167536
Paino kappaletta kohti (sis. pakkauksen) 53,2 g
Paino kappaletta kohti (ilman pakkausta) 52 g
Tullitariffinumero 85444210
Alkuperämaa PL
