Patch panels

Tekniset tiedot

Notes

Utilization restriction
CCCex note Use in potentially explosive areas is not permitted in China.

Product properties

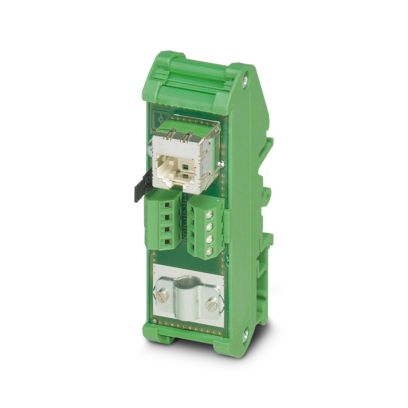

Product type Patch panel
MTBF 6702 Years (Telcordia standard, 25°C temperature, 21% operating cycle (5 days a week, 8 hours a day))
2962 Years (Telcordia standard, 40°C temperature, 34.25% operating cycle (5 days a week, 12 hours a day))

Connection data

Connection method Screw connection

Interfaces

Data: Ethernet interface, 10/100/1000Base-T(X) in accordance with IEEE 802.3
Serial transmission speed 10/100/1000 Mbps
Connection method Screw connection
No. of channels 1
Tightening torque 0.22 Nm … 0.25 Nm
Pin assignment 1:1
Transmission length 100 m (including patch cables)
Single conductor/terminal point, rigid 0.14 mm² … 1.5 mm²
Single-wire/terminal point, flexible 0.14 mm² … 1 mm²
Single-wire/terminal point, rigid AWG max. 16
Single-wire/terminal point, rigid AWG min. 26

Data: Ethernet interface, 10/100/1000Base-T(X) in accordance with IEEE 802.3
Connection method RJ45 CAT5e
No. of channels 1

Dimensions

Width 29 mm
Height 90 mm
Depth 53 mm

Material specifications

Material PVC / PA

Cable/line

External cable diameter () 6 mm … 10 mm
Cable impedance 100 Ω

Mechanical properties

Mechanical data
Insertion/withdrawal cycles ≤ 2500

Environmental and real-life conditions

Ambient conditions
Degree of protection IP20
Ambient temperature (operation) -25 °C … 70 °C
Ambient temperature (storage/transport) -25 °C … 85 °C
Ambient temperature (assembly) -10 °C … 70 °C
Permissible humidity (operation) 25 % … 95 % (non-condensing)

Approvals

ATEX
Identification  II 3 G Ex ec IIC Gc
Certificate PxCIF14ATEX2901642U
Note Please follow the special installation instructions in the documentation!

UKEX
Identification  II 3 G Ex ec IIC Gc
Certificate PxCIMA21UKEX2901642U

Corrosive gas test
Identification ISA-S71.04-1985 G3 Harsh Group A

Shipbuilding
Identification DNV GL

DNV GL data
Temperature B
Humidity A
Vibration A
EMC B
Enclosure Required protection according to the Rules shall be provided upon installation on board

Mounting

Mounting type DIN rail mounting
Connection method Screw connection

Muut tiedot

Tuotenumero 2901643
Pakkausyksikkö 10 Kappaletta
Tuoteavain DNC331
Tuotekoodi DNC331
GTIN 4046356623391
Paino kappaletta kohti (sis. pakkauksen) 56,85 g
Paino kappaletta kohti (ilman pakkausta) 58,08 g
Tullitariffinumero 85366990
Alkuperämaa DE
