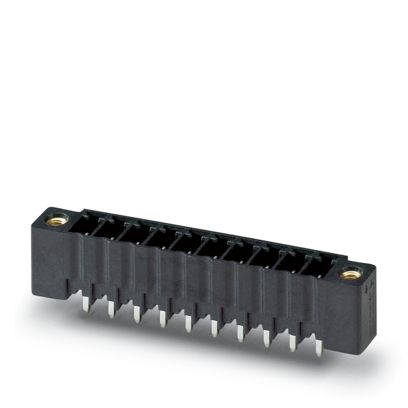

PCB header

Tekniset tiedot

Product properties

Type Component suitable for through hole reflow
Product line COMBICON Connectors S
Product type PCB headers
Product family MCV 1,5/..-GF-THR
Number of positions 12
Pitch 3.81 mm
Number of connections 12
Number of rows 1
Mounting flange Threaded flange
Number of potentials 12
Pin layout Linear pinning
Solder pins per potential 1

Electrical properties

Nominal current IN 8 A
Nominal voltage UN 160 V
Degree of pollution 3
Contact resistance 1.1 mΩ
Rated voltage (III/3) 160 V
Rated surge voltage (III/3) 2.5 kV
Rated voltage (III/2) 160 V
Rated surge voltage (III/2) 2.5 kV
Rated voltage (II/2) 250 V
Rated surge voltage (II/2) 2.5 kV

Mounting

Mounting type THR soldering
Pin layout Linear pinning

Flange
Tightening torque 0.3 Nm

Processing notes
Process Reflow/wave soldering
Moisture Sensitive Level MSL 1
Classification temperature Tc 260 °C
Solder cycles in the reflow 3

Material specifications

Material data – contact
Note WEEE/RoHS-compliant, free of whiskers according to IEC 60068-2-82/JEDEC JESD 201
Contact material Cu alloy
Surface characteristics Tin-plated
Metal surface contact area (top layer) Tin (3 – 5 µm Sn)
Metal surface contact area (middle layer) Nickel (1.3 – 3 µm Ni)
Metal surface soldering area (top layer) Tin (3 – 5 µm Sn)
Metal surface soldering area (middle layer) Nickel (1.3 – 3 µm Ni)

Material data – housing
Color (Housing) black (9005)
Insulating material LCP
Insulating material group IIIa
CTI according to IEC 60112 175
Flammability rating according to UL 94 V0

Notes

General Processing using reflow processes in compliance with IEC 60068-2-58 or DIN EN 61760-1 (latest version)
Moisture Sensitive Level (MSL) = 1 according to IPC/JEDEC J-STD-020-C

Dimensions

Pitch 3.81 mm
Width [w] 56.11 mm
Height [h] 11.8 mm
Length [l] 7.25 mm
Installed height 9.2 mm
Solder pin length [P] 2.6 mm
Pin dimensions 0.8 x 0.8 mm

PCB design
Hole diameter 1.4 mm

Mechanical tests

Visual inspection
Specification IEC 60512-1-1:2002-02
Result Test passed

Dimension check
Specification IEC 60512-1-2:2002-02
Result Test passed

Resistance of inscriptions
Specification IEC 60068-2-70:1995-12
Result Test passed

Polarization and coding
Specification IEC 60512-13-5:2006-02
Result Test passed

Contact holder in insert
Specification IEC 60512-15-1:2008-05

Contact holder in insert
Requirements >20 N Test passed

Insertion and withdrawal forces
Result Test passed
No. of cycles 25
Insertion strength per pos. approx. 8 N
Withdraw strength per pos. approx. 6 N

Electrical tests

Thermal test | Test group C
Specification IEC 60512-5-1:2002-02
Tested number of positions 12

Insulation resistance
Specification IEC 60512-3-1:2002-02
Insulation resistance, neighboring positions > 5 MΩ

Air clearances and creepage distances |
Specification IEC 60664-1:2007-04
Insulating material group IIIa
Comparative tracking index (IEC 60112) CTI 175
Rated insulation voltage (III/3) 160 V
Rated surge voltage (III/3) 2.5 kV
minimum clearance value – non-homogenous field (III/3) 1.5 mm
minimum creepage distance (III/3) 2.5 mm
Rated insulation voltage (III/2) 160 V
Rated surge voltage (III/2) 2.5 kV
minimum clearance value – non-homogenous field (III/2) 1.5 mm
minimum creepage distance (III/2) 1.6 mm
Rated insulation voltage (II/2) 250 V
Rated surge voltage (II/2) 2.5 kV
minimum clearance value – non-homogenous field (II/2) 1.5 mm
minimum creepage distance (II/2) 2.5 mm

Environmental and real-life conditions

Vibration test
Specification IEC 60068-2-6:2007-12
Frequency 10 – 150 – 10 Hz
Sweep speed 1 octave/min
Amplitude 0.35 mm (10 Hz … 60.1 Hz)
Sweep speed 5g (60.1 Hz … 150 Hz)
Test duration per axis 2.5 h

Durability test
Specification IEC 60512-9-1:2010-03
Impulse withstand voltage at sea level 2.95 kV
Contact resistance R1 1.1 mΩ
Contact resistance R2 1.2 mΩ
Insertion/withdrawal cycles 25
Insulation resistance, neighboring positions > 5 MΩ

Climatic test
Specification ISO 6988:1985-02
Corrosive stress 0.2 dm3 SO2 on 300 dm3/40 °C/1 cycle
Thermal stress 100 °C/168 h
Power-frequency withstand voltage 1.39 kV

Shocks
Specification IEC 60068-2-27:2008-02
Pulse shape Semi-sinusoidal
Acceleration 30g
Shock duration 18 ms
Test directions X-, Y- and Z-axis (pos. and neg.)

Ambient conditions
Ambient temperature (operation) -40 °C … 100 °C (dependent on the derating curve)
Ambient temperature (storage/transport) -40 °C … 70 °C
Relative humidity (storage/transport) 30 % … 70 %
Ambient temperature (assembly) -5 °C … 100 °C

Muut tiedot

Tuotenumero 1707735
Pakkausyksikkö 50 Kappaletta
Tuoteavain AABTBE
Tuotekoodi AABTBE
GTIN 4046356034432
Paino kappaletta kohti (sis. pakkauksen) 4,11 g
Paino kappaletta kohti (ilman pakkausta) 3,776 g
Tullitariffinumero 85366990
Alkuperämaa DE
