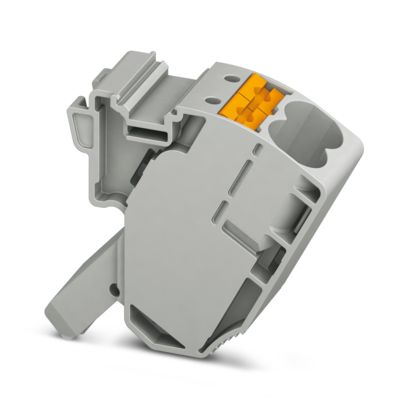

Pick-off terminal block

Pick-off terminal block, nom. voltage: 1500 V, nominal current: 57 A, connection method: Push-in connection, number of connections: 2, cross section: 0.5 mm² – 16 mm², AWG: 20 – 6, width: 18.5 mm, height: 34.7 mm, color: gray, mounting type: on base element

Tekniset tiedot

Notes
General: For use with PTPOWER 50, 95, 150, and 185 PowerTurn high-current terminal blocks

Product properties
Product type: Pick-off terminal
Number of connections: 2
Number of rows: 1
Potentials: 1
Insulation: characteristics
Overvoltage category: III
Degree of pollution: 3

Electrical properties
Rated surge voltage: 8 kV
Maximum power dissipation for nominal condition: 1.82 W

Connection data
Number of connections per level:2
Nominal cross section: 10 mm²
Cross section AWG: (converted acc. to IEC)

1 level
Stripping length: 18 mm
Internal cylindrical gage: A6
Conductor cross section rigid: 0.5 mm² … 16 mm²
Cross section AWG: 20 … 6 (converted acc. to IEC)
Conductor cross section flexible: 0.5 mm² … 10 mm²
Conductor cross section, flexible [AWG]: 20 … 8 (converted acc. to IEC)
Conductor cross-section flexible (ferrule without plastic sleeve): 0.5 mm² … 10 mm²
Flexible conductor cross section (ferrule with plastic sleeve): 0.5 mm² … 10 mm²
Conductor cross-section flexible (2 conductors with the same cross-section, with TWIN ferrule and plastic sleeve): 0.5 mm² … 4 mm²
2 conductors with the same cross section, flexible, with TWIN ferrule with plastic sleeve: 1.5 mm² … 4 mm²
Nominal current: 57 A
Maximum load current: 57 A (The maximum load current must not be exceeded by the total current of all connected conductors.)
Nominal voltage: 1500 V
Nominal cross section: 10 mm²

1 level Connection cross sections directly pluggable
Conductor cross section rigid: 1 mm² … 16 mm²
Conductor cross-section flexible (ferrule without plastic sleeve): 4 mm² … 10 mm²
Flexible conductor cross section (ferrule with plastic sleeve): 2.5 mm² … 10 mm²

Ex data

Rated data (ATEX/IECEx)
Identification: II 2 GD Ex eb IIC Gb
Operating temperature range: -60 °C … 110 °C
Ex-certified accessories: 1204517 SZF 1-0,6X3,5
Ex temperature increase: 40 K (51 A / 10 mm²)
Rated voltage: 1100 V
Rated insulation voltage: 1000 V
output: (Permanent)

Ex level General
Rated current: 50 A
Maximum load current: 50 A
Contact resistance: 1.05 mΩ

Ex connection data General
Ferrule length: 18 mm
Stripping length: 18 mm
Nominal cross section: 10 mm²
Rated cross section AWG: 6
Connection capacity rigid: 0.5 mm² … 16 mm²
Connection capacity AWG: 20 … 6
Conductor cross section flexible, with ferrule without plastic sleeve min: 1.5 mm²
Conductor cross section flexible, with ferrule without plastic sleeve max: 10 mm²
Single conductor/terminal point, flexible, with ferrule, without plastic sleeve, AWG: 20 … 8

Dimensions
Width: 18.5 mm
Height: 35 mm
Depth: 34.7 mm

Material specifications
Color: gray
Flammability rating according to UL 94: V0
Insulating material group: I
Insulating material: PA
Static insulating material application in cold: -60 °C
Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21)): 125 °C
Relative insulation material temperature index (Elec., UL 746 B): 130 °C
Fire protection for rail vehicles (DIN EN 45545-2) R22: HL 1 – HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R23: HL 1 – HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R24: HL 1 – HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R26: HL 1 – HL 3
Calorimetric heat release NFPA 130 (ASTM E 1354): 27,5 MJ/kg
Surface flammability NFPA 130 (ASTM E 162): passed
Specific optical density of smoke NFPA 130 (ASTM E 662): passed
Smoke gas toxicity NFPA 130 (SMP 800C): passed

Electrical tests

Surge voltage test
Test voltage setpoint: 9.8 kV
Result: Test passed

Temperature-rise test
Requirement temperature-rise test: Increase in temperature ≤ 45 K
Result: Test passed
Short-time withstand current 10 mm²: 1.2 kA
Result: Test passed

Power-frequency withstand voltage
Result: Test passed

Mechanical properties

Mechanical data
Open side panel: No

Mechanical tests

Mechanical strength
Result: Test passed

Test for conductor damage and slackening
Rotation speed: 10 rpm
Revolutions: 135
Conductor cross section/weight: 0.5 mm² / 0.3 kg, 10 mm² / 2 kg, 16 mm² / 2.9 kg
Result: Test passed

Environmental and real-life conditions

Aging
Temperature cycles: 192
Result: Test passed

Needle-flame test
Time of exposure: 30 s
Result: Test passed

Oscillation/broadband noise
Specification: DIN EN 50155 (VDE 0115-200):2008-03
Spectrum: Service life test category 2, bogie-mounted
Frequency: f1 = 5 Hz to f2 = 250 Hz
ASD level: 6.12 (m/s²)²/Hz
Acceleration: 3.12g
Test duration per axis: 5 h
Test directions: X-, Y- and Z-axis
Result: Test passed

Shocks
Specification: DIN EN 50155 (VDE 0115-200):2008-03
Pulse shape: Half-sine
Acceleration: 30g
Shock duration: 18 ms
Number of shocks per direction: 3
Test directions: X-, Y- and Z-axis (pos. and neg.)
Result: Test passed

Ambient conditions
Ambient temperature (storage/transport): -25 °C … 60 °C (for a short time, not exceeding 24 h, -60 °C to +70 °C)
Ambient temperature (assembly): -5 °C … 70 °C
Ambient temperature (actuation): -5 °C … 70 °C
Permissible humidity (storage/transport): 30 % … 70 %

Mounting

Mounting type: on base element

Muut tiedot

Tuotenumero: 3260145
Pakkausyksikkö: 10 Kappaletta
Tuoteavain: BE2ZWX
Tuotekoodi: BE2ZWX
GTIN: 4046356779074
Paino kappaletta kohti (sis. pakkauksen): 22,9 g
Paino kappaletta kohti (ilman pakkausta): 19 g
Tullitariffinumero: 85369010
Alkuperämaa: PL
