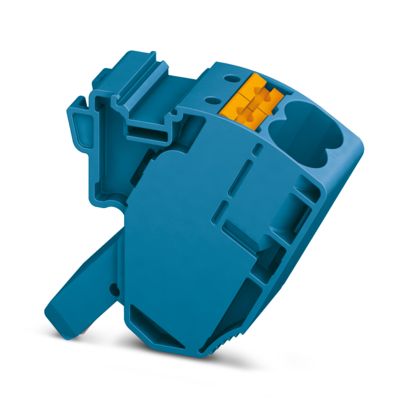

Pick-off terminal block

Pick-off terminal block, nom. voltage: 1500 V, nominal current: 57 A, connection method: Push-in connection, number of connections: 2, cross section: 0.5 mm² – 16 mm², AWG: 20 – 6, width: 18.5 mm, height: 34.7 mm, color: blue, mounting type: on base element

Tekniset tiedot

Notes
General For use with PTPOWER 50, 95, 150, and 185 PowerTurn high-current terminal blocks

Product properties
Product type Pick-off terminal
Number of connections 2
Number of rows 1
Potentials 1

Insulation characteristics
Overvoltage category III
Degree of pollution 3

Electrical properties
Rated surge voltage 8 kV
Maximum power dissipation for nominal condition 1.82 W

Connection data
Number of connections per level 2
Nominal cross section 10 mm²
Cross section AWG (converted acc. to IEC)

1 level
Stripping length 18 mm
Internal cylindrical gage A6
Conductor cross section rigid 0.5 mm² … 16 mm²
Cross section AWG 20 … 6 (converted acc. to IEC)
Conductor cross section flexible 0.5 mm² … 10 mm²
Conductor cross section, flexible [AWG] 20 … 8 (converted acc. to IEC)
Conductor cross-section flexible (ferrule without plastic sleeve) 0.5 mm² … 10 mm²
Flexible conductor cross section (ferrule with plastic sleeve) 0.5 mm² … 10 mm²
Conductor cross-section flexible (2 conductors with the same cross-section, with TWIN ferrule and plastic sleeve) 0.5 mm² … 4 mm²
2 conductors with the same cross section, flexible, with TWIN ferrule with plastic sleeve 1.5 mm² … 4 mm²
Nominal current 57 A
Maximum load current 57 A (The maximum load current must not be exceeded by the total current of all connected conductors.)
Nominal voltage 1500 V
Nominal cross section 10 mm²

1 level Connection cross sections directly pluggable
Conductor cross section rigid 1 mm² … 16 mm²
Conductor cross-section flexible (ferrule without plastic sleeve) 4 mm² … 10 mm²
Flexible conductor cross section (ferrule with plastic sleeve) 2.5 mm² … 10 mm²

Ex data

Rated data (ATEX/IECEx)
Rated data (ATEX/IECEx)
Identification  II 2 GD Ex eb IIC Gb
Operating temperature range -60 °C … 110 °C
Ex-certified accessories 1204517 SZF 1-0,6X3,5
Ex temperature increase 40 K (51 A / 10 mm²)
Rated voltage 1100 V
Rated insulation voltage 1000 V
output (Permanent)

Ex level General
Rated current 50 A
Maximum load current 50 A
Contact resistance 1.05 mΩ

Ex connection data General
Ferrule length 18 mm
Stripping length 18 mm
Nominal cross section 10 mm²
Rated cross section AWG 6
Connection capacity rigid 0.5 mm² … 16 mm²
Connection capacity AWG 20 … 6
Conductor cross section flexible, with ferrule without plastic sleeve min. 1.5 mm²
Conductor cross section flexible, with ferrule without plastic sleeve max. 10 mm²
Single conductor/terminal point, flexible, with ferrule, without plastic sleeve, AWG 20 … 8

Dimensions
Width 18.5 mm
Height 35 mm
Depth 34.7 mm

Material specifications
Color blue
Flammability rating according to UL 94 V0
Insulating material group I
Insulating material PA
Static insulating material application in cold -60 °C
Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21)) 125 °C
Relative insulation material temperature index (Elec., UL 746 B) 130 °C
Fire protection for rail vehicles (DIN EN 45545-2) R22 HL 1 – HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R23 HL 1 – HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R24 HL 1 – HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R26 HL 1 – HL 3
Calorimetric heat release NFPA 130 (ASTM E 1354) 27,5 MJ/kg
Surface flammability NFPA 130 (ASTM E 162) passed
Specific optical density of smoke NFPA 130 (ASTM E 662) passed
Smoke gas toxicity NFPA 130 (SMP 800C) passed

Mechanical properties

Mechanical data
Open side panel No

Environmental and real-life conditions

Ambient conditions
Ambient temperature (storage/transport) -25 °C … 60 °C (for a short time, not exceeding 24 h, -60 °C to +70 °C)
Ambient temperature (assembly) -5 °C … 70 °C
Ambient temperature (actuation) -5 °C … 70 °C
Permissible humidity (storage/transport) 30 % … 70 %

Mounting

Mounting type on base element

Muut tiedot

Tuotenumero 3260148
Pakkausyksikkö 10 Kappaletta
Tuoteavain BE2ZWX
Tuotekoodi BE2ZWX
GTIN 4046356779081
Paino kappaletta kohti (sis. pakkauksen) 23,118 g
Paino kappaletta kohti (ilman pakkausta) 22,6 g
Tullitariffinumero 85369010
Alkuperämaa PL
